3243100, Rittal Filter Fan, 230 V ac, ac Operation, 510m³/h Filtered, 600m³/h Unimpeded, IP54, 323 x 323mm, Вентилятор

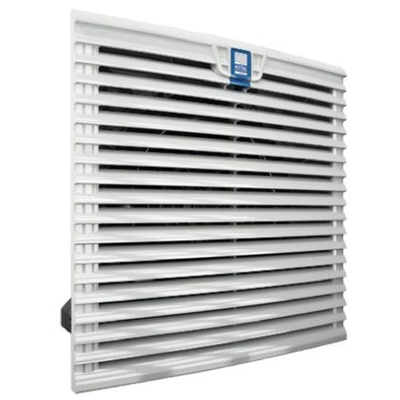

Rittal Filter Fan, 323 x 323mm, 510m³/h - TopTherm Series - 3243100

Prevent large electrical enclosures from overheating with this efficient filter fan from Rittal. Thanks to its large dimensions of 323 (height) x 323mm (width), its grille area draws in plenty of air, while the replaceable mat filters out dust particles. For powerful ventilation, the diagonal design promotes even airflow at a high rate of 510m³/h (cubic metres per hour) when unimpeded and 465m³/h when filtered. The fan mechanism is adjustable, so you can position it to suit your needs and use it to blow air in or extract air for versatile use.

Features & Benefits

• Tool-free mounting clips for quick installation
• Wide operating temperature range of -30°C to +55°C for use in demanding applications
• Low noise level of 61dB (decibels) to minimise disruption in your work environment
• Long service life of up to 65,000 hours for reliable performance
• IP54 (ingress protection) rating indicates resistance to dust and water splashes

Applications

• Industrial power distribution enclosures
• IT and communications data cabinets
• Climate control systems

How much installation space does this fan need?

This fan needs an installation width and height of 292mm and a depth of 118.5mm, keeping your cut-out space to a minimum.
