3243.110, Rittal Filter Fan323 x 323mm Face Dimensions, 510m³/h, AC Operation, 115 V ac, IP54, Вентилятор

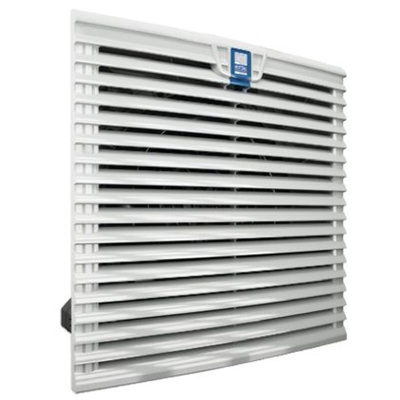

Rittal TopTherm Filter Fan

The Rittal TopTherm filter fan is easy to assemble unit that provides unimpeded airflow of 600m³/h and filtered airflow of 510m³/h. It has a voltage rating of 115 VAC. The TopTherm versatile series does not require any tools during assembly, exchange, or maintenance. The fan module and power connection are simple to position to suit the needs of the application. A latch on the grille allows fast filter replacement and the electrical connections are managed with spring clamp terminals. TopTherm units feature efficient technology that enables greater pressure stability and constant airflow. It has a face dimension of 323mm x 323mm and an installation depth of of 118.5mm.

Features and Benefits

Flexible assembly options
Minimum installation depth
Even air distribution
Noise level 61dB

Certifications

IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
