3244110, Rittal Filter Fan, 115 V ac, AC Operation, 587m³/h Filtered, 770m³/h Unimpeded, IP54, 323 x 323mm, Вентилятор

Rittal TopTherm Fan and Filter Units

Rittal TopTherm fan and filter units are efficient, easy to assemble and versatile. The TopTherm series requires no tools during assembly, exchange or maintenance. The fan module and power connection are simple to position to suit the needs of the application, a latch on the grille allows for fast filter replacement and the electrical connections are managed with spring clamp terminals. TopTherm units feature efficient technology that enables greater pressure stability and more constant air flows.

Stock No: 756-9935 is a temperature indicator.

Features and Benefits:
• Flexible assembly options
• Minimum installation depth
• Even air distribution

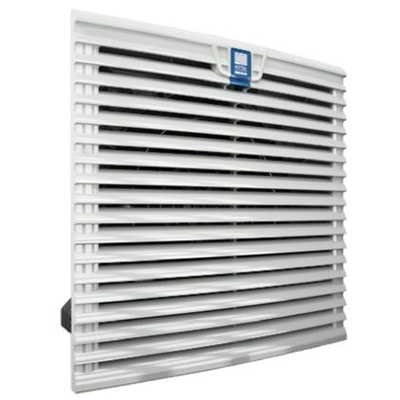

Rittal Filter Fan, 115V AC Operating Voltage, 323mm Width - TopTherm Series - 3244110

Use this filter fan from Rittal to keep the equipment in your enclosures cool. It protects devices from overheating by circulating the air for optimal ventilation and temperature control. The fan is supplied fully assembled for ease of installation. You can quickly replace the filter as needed thanks to the latch on the grille. A maximum power consumption of 145W makes this fan an energy-efficient choice.

Features & Benefits

• IP54 rating means it's protected against limited amounts of dust and water spray
• Low noise level of 66dB for quiet operation
• Supply voltage of 115V AC for use in low-voltage systems

Applications

• Server rooms
• OEM equipment
• Hospitality industry
• Factories

Can I use this filter fan at extreme temperatures?

Yes, this unit has a wide operating temperature range of -30°C to +55°C for use in demanding environments.

Datasheet

Catalogue - Technical System Catalogue Climate Control

Datasheet - 3244110
