3240200, Rittal Fan Filter for 177 x 177 mm, 224 x 224 mm Fans, ABS Frame, 255 x 255mm, Фильтр

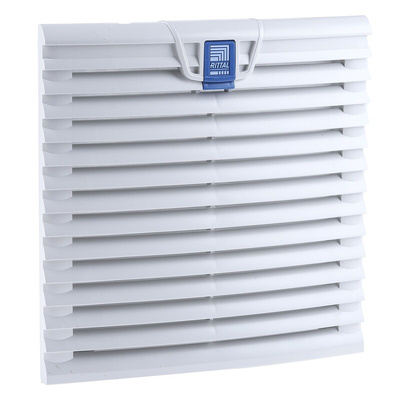

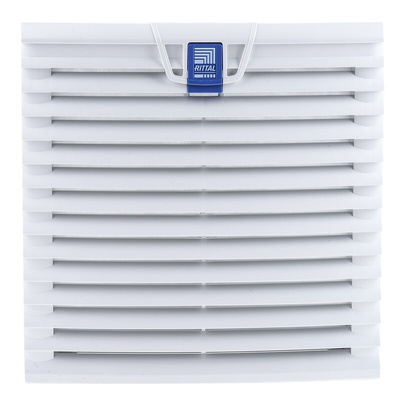

Rittal Exhaust Fan Filter, 25mm Thickness, 255mm Length - 3240200

This filter unit from Rittal is used with fans and blowers to remove dust particles for enhanced filtration. It consists of an outer cover, filter pad and a finger guard that protects you against accidental contact with the fan for enhanced safety. The cover is made of an acrylonitrile butadiene styrene (ABS) material that provides effective durability and impact resistance, so it can stand up to heavy-duty use. Its dimensions of 255 x 255mm make it a good fit for both domestic and commercial fan units.

Features & Benefits

• Chemical fibre material for effective dust protection
• IP56 (ingress protection) rating when fitted with the filter and a hose-proof hood means it's resistant to dust and strong water jets
• Fits fans measuring 177 x 177mm or 224 x 224mm for versatile use

Applications

• Computer numerical control (CNC) equipment
• Welding machines
• Electrical control cabinets

How do I install the filter?

Release the louvred grille by pressing lightly on the catch, then insert the filter mat with the rough side facing toward the louvred grille. Push the louvred grille back in until you hear it click into place.

Datasheet

Catalogue - Technical System Catalogue

Datasheet - 3240200
