3237080, Rittal Stainless Steel Hose-Proof Hood for 92mm Fans, 230 x 150mm, Решетка вентилятора

Rittal TopTherm Fan and Filter Units

Rittal TopTherm fan and filter units are efficient, easy to assemble and versatile. The TopTherm series requires no tools during assembly, exchange or maintenance. The fan module and power connection are simple to position to suit the needs of the application, a latch on the grille allows for fast filter replacement and the electrical connections are managed with spring clamp terminals. TopTherm units feature efficient technology that enables greater pressure stability and more constant air flows.

Stock No: 756-9935 is a temperature indicator.

Features and Benefits:
• Flexible assembly options
• Minimum installation depth
• Even air distribution

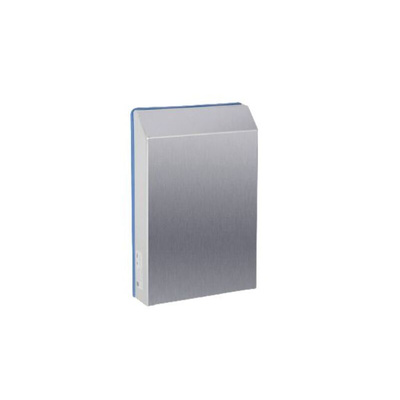

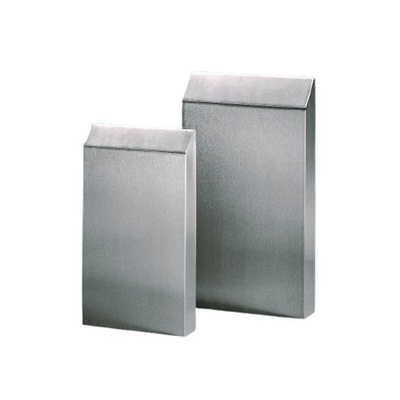

Rittal Hose-Proof Filter Hood, For Use With TopTherm Series, 230mm Height - 3237080

Use this hose-proof hood from Rittal to protect your filter fan from moisture and contaminants. It's designed for use with the TopTherm series for ease of assembly. Thanks to its robust stainless steel construction, this hood is resistant to corrosion and impact for effective protection in harsh industrial environments. This helps to ensure that your filter fan continues to function optimally for effective cooling and filtration in sensitive applications.

Features & Benefits

• Silicone coating easily wipes clean for use in hygienic environments
• IP56 (ingress protection) rating for protection against limited amounts of dust and high-pressure water jets
• Ample dimensions of 230 (height) x 150 (width) x 40mm (depth) to fit over a fan and filter
• Light weight of 1.14kg to minimise strain on your wall

Applications

• Food and hospitality industry
• IT and server management
• Outdoor worksites and construction applications

Does this filter hood affect the rate of airflow through my filter fan?

The open underside of this hood means the filter fan takes in virtually the same volume of air as it does without the hood, so it will continue to work effectively.

Datasheet

7569903_Datasheet_en

7569903_Instruction Sheet_en
