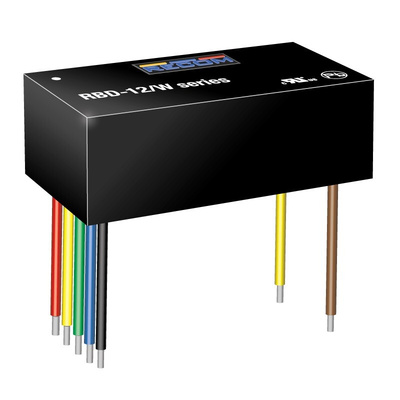

RBD-12-0.50/W, Recom LED Driver, 8 → 40V dc Output, 28W Output, 500mA Output, Constant Current Dimmable, Драйвер светодиодов

Recom LIGHTLINE 3-20W Constant Current Step Up Step Down LED Driver - RBD-12 Ser

LIGHTLINE RBD-12 series 3-20W constant current step up step down LED drivers. These RBD-12 series PCB mount constant current LED drivers have digital PWM and analogue dimming control and Vref output. Typical applications for these constant current LED drivers include solar powered lighting, traffic signalling and transportation lighting.

PCB through hole mount or wired versions
Digital PMW and analogue dimming
High efficiency of 90%
Short circuit protection and over temperature shutdown
8-40 Vdc output voltage

Note

MTBF: MIL-HDBK217F at 25°C
Quoted temperature ranges are without derating

Standards

Meets EN-60950-1 and UL-60950-1

RECOM LED Driver, DC Input Type, 0 to 500mA Output current - RBD-12 Series - RBD-12-0.50/W

Take charge of your lighting with this LED driver from RECOM. By converting inputs between 8 and 36V DC into an 8 to 40V DC supply voltage, it's on hand to reliably power LEDs without overheating or the irritation of flickering. This keeps your bulbs performing at a high level, allowing them to shine on through. A mean time between failures of 1.7 million hours means this component can stay the distance.

• High efficiency of 90%, so it's an energy-saving device
• Digital and analogue dimming control options give you greater functionality
• Maximum operating humidity level of 95% RH for use in areas with high levels of water vapour
• Low weight of 17g to avoid putting strain on mounting surfaces
• Compact dimensions of 32.60 (L) x 16.65 (W) x 11.10mm for mounting in small areas

Applications

• Vehicle headlamps and taillights
• Hotels and restaurants
• Retail lighting systems

Can I use this unit in challenging conditions?

Yes, you can. This reliable LED driver is designed to power systems in a temperature range between -40°C and +75°C.

LED Drivers

3-20W Constant Current Step Up Step Down LED Driver - RBD-12 Series
