OS32C-SP1, Omron 0S32C Series Laser Scanner Laser Scanner, 30 mm, 40 mm, 50 mm, 70 mm Resolution, Световые завесы

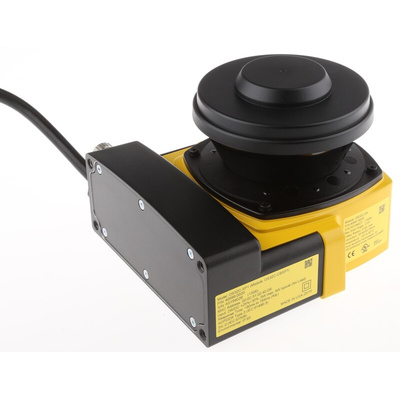

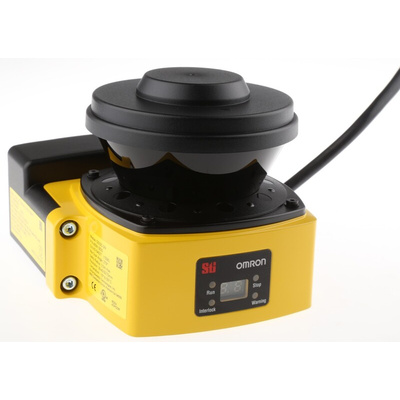

Omron Safety Laser Scanner

The Omron OS32C series is a compact and versatile safety laser scanner designed for easy handling and installation. It has a low profile and lightweight body allows installation in small spaces. Whereas, the 270° detection angle provides total coverage of two sides with just one laser scanner. The user can set up to 70 combinations for complex AGV applications, each with one safety zone and two warning zones. You can set these two warning zones to support various purposes such as warning sound and speed control. in addition, the reference boundary monitoring function supports intrusion detection without physically blocking the entrance. Also, various operation patterns can be supported by switching zone sets.

Features and Benefits

Easy configuration of complex zones
Maximum response time is 680ms (On to Off) , 780ms (Off to On)
Reference boundary monitoring function prevents unauthorized changes in the scanner position
Integrated management via Ethernet
Operating state can be determined at a glance with 8 individual sector and LED indicators
Simplified wiring and side location cable entry
Replaceable sensor, no reprogramming needed
Range of up to 3m for safety zone and 10m for warning zones

Applications

Collision avoidance of AGVs (automated guided vehicles)
Intrusion detection through an entrance
Presence detection within a machine’s hazardous area

Certifications

EN61496-1
EN61496-3
EN61508
ISO13849-1
UL508 approved
UL1998 approved
CAN/CSA-C22.2 No. 14
CAN/CSA-C22.2 No. 0.8
TUV certified
CE certified
IP65 rated
