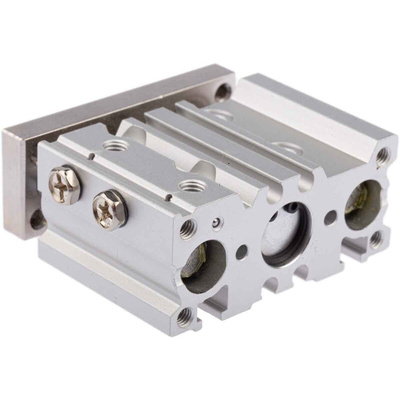

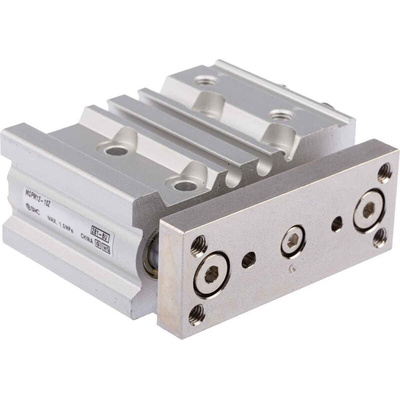

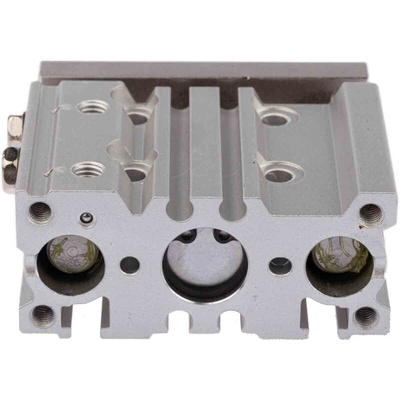

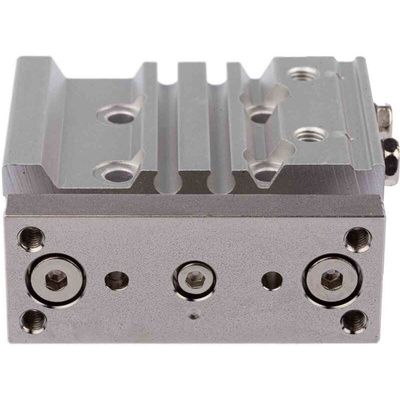

MGPM12-10Z, SMC Pneumatic Guided Cylinder - 12mm Bore, 10mm Stroke, MGP Series, Double Acting, Пневмоцилиндр

SMC MGP Compact Guide Cylinder with End Lock

SMC MGP Compact Guide slide-bearing cylinders with End Lock (that holds the cylinder in position, even if the air supply is disconnected), offer mounting points on the top, side, or bottom (and a T-slot mount option), with pneumatic ports on the top or side. CQM double-acting cylinders are non-rotatable, offer a high resistance to side loads, and are able to withstand lateral loading forces that are more than twice the force experienced by conventional stopper cylinders. SMC MGP cylinders with End Lock are suitable for conveyor line stopping, lifting, positioning, or push-off applications.

Note

May be used with reed switch 161-782, available in most markets.

Datasheet
