A165E-S-01, Omron A165E Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 1NC, IP65

Omron Emergency Stop Pushbutton

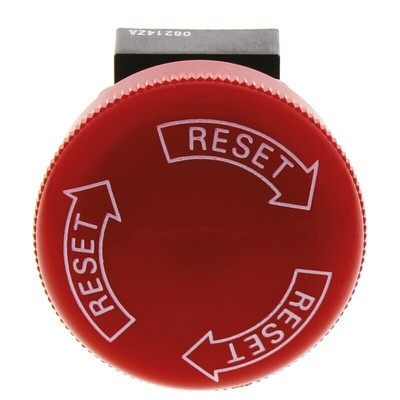

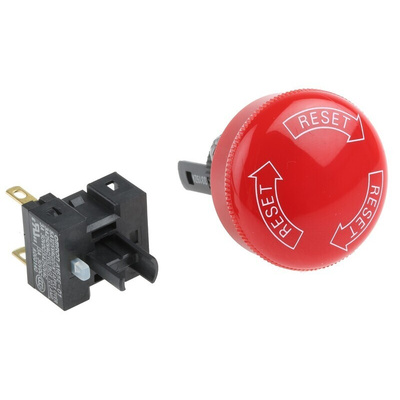

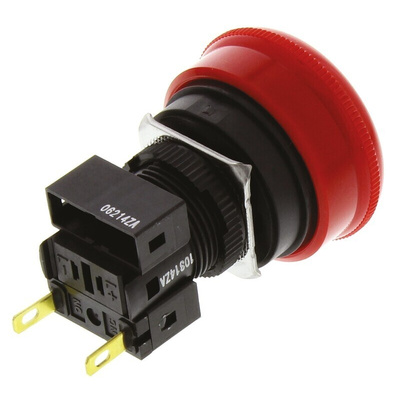

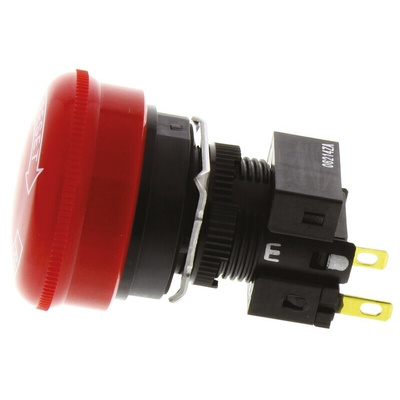

The Omron A165E series emergency stop pushbutton switch has a red mushroom style head with the diameter of 30mm. It has a single pole single throw (SPST) contact configuration. This button features modular construction that allows the switch to be separated for easy wiring but still benefit from the easy handling of a one-piece unit. The direct opening mechanism of this E-stop switch has a minimum contact separation of 3mm in accordance. This pushbutton is made from the plastic material. The button has a current rating of 3A and voltage rating of 250VAC.

Features and Benefits

2NC contact configuration

Twist to reset method
Non-illuminated
Direct opening mechanism with minimum contact separation of 3mm
Safety lock mechanism prevents misuse
Short mounting depth, less than 28.5mm below panel
Blank name plate available separately, yellow vinyl chloride

Certifications

EN418,
EN60947-5-1
IP65 rated
UL approved
cUL certified
