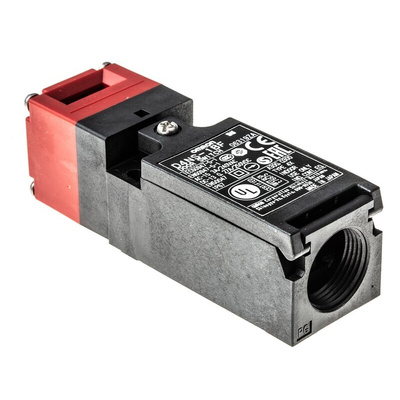

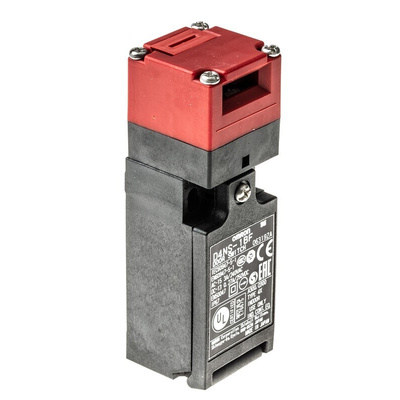

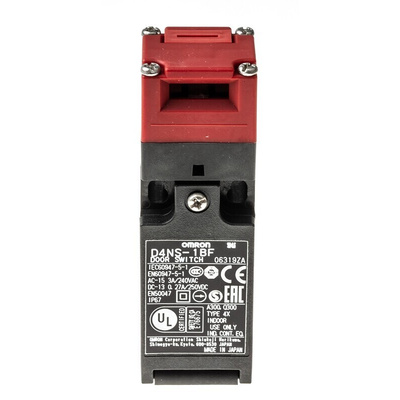

D4NS-1BF, Omron D4NS Series Safety Interlock Switch, 2NC, Выключатель

D4NS Safety Door Switches

Next generation safety door switches
Choice of NC and NO contact configurations and conduit entry sizes.
Standard gold clad contacts provide high reliability
Can be used for standard loads or microloads
Operating keys should be ordered separately

Conforms to the following EC Directives:
Machinery directive, Low voltage directive, EN 50047, EN 60204-1, EN 1088, GS-ET-15

Certified Standards: TUV, UL, CSA

Omron Safety Door Switch

The Omron D4NS series door switch has 2NC switch configuration. It is a labour saving and environmentally friendly safety door switch. It has a separate actuator and make-before-break contacts (MBB). The housing material is plastic and it is available in a screw connection type.

Features and Benefits

Conduit size is Pg13.5 (1-conduit)
Standardised gold-clad contacts for high contact reliability
Applicable to both standard loads and micro loads
Environment friendly - Free of lead, cadmium, and hexavalent chrome
Conforms to the machinery directive and low voltage directive

Applications

Sliding
Hinged
Removable guards

Certifications

EN60947-5-1
UL508
CSA C22.2 No.14
GS-ET-15
GB14048.5
EN50047
EN1088 TUV certified
CCC certified
IP67 rated

Interlock Switch
