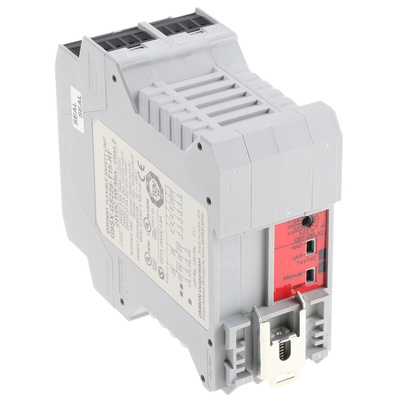

G9SX-GS226-T15-RT DC24, Omron Dual-Channel Safety Switch/Interlock Safety Relay, 24V dc, Реле безопасности

G9SX-GS, Safety Relays, Guard Switching

The G9SX-GS safety relay is designed to support maintenance mode and normal operation mode in a safe way.

Two operation modes to support auto switching for applications where machine and worker co-operate and manual switching for applications with limitations in operation such as machine maintenance
Clear LED diagnosis of all inputs and outputs
Applicable up to Category 4 acc. EN 954-1

Standards

EN 954-1

G9SX-GS Safety Guard Relay Switching Module.

•Two functions supporting two types of application.
•Auto-switching. Where operators work along with machines.
•Manual switching. Applications with limited operations.
•External indicator outputs indicating the switching status of two safety input devices.
•Auxiliary outputs allow monitoring of safety inputs, outputs, errors.
•LED indicators for easy diagnosis.
•Logical and connections for difficult applications along with other G9SX series.

G9SX-GS226-T15-RT DC24 Safety Guard Switching Unit.

•Safety outputs. P channel MOS-FET output.
•Instantaneous – 2 semi-conductor.
•OFF-delayed 2 semi-conductor. (instantaneous output by setting OFF-delay time to 0 s).
•Auxiliary outputs 6 semi-conductor. PNP transistor output – except for external indicator outputs, they are P channel MOS-FET outputs.
•Logical AND connections 1 semi-conductor input and output.
•Max OFF delayed time 15 s.
•Time OFF set in 16 steps (0, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 1, 1.5, 2, 3, 4, 5, 7, 10 or 15 s)
•Rated voltage 24 V dc.
•Screw terminal block.

Features and Benefits.

•Rated supply voltage 24 V dc.
•Operating voltage range -15% to 10% of sated supply voltage.
•Power consumption 5 W max.
•Input operating voltage 20.4 V dc to 26.4 V dc, Internal impedance approx. 2.8 kΩ
•Instantaneous safety outputs P channel MOS-FET
•OFF-delayed safety outputs load current 0.8 A dc max (derating required when mounted side by side 0.4 A max load)
•Auxiliary outputs PNP transistor (load current 0.8 A dc max output max) (derating required when mounted side by side 0.4 A max load)
•External indicator outputs P channel MOS-FET, connectable indicators, 24 V dc, 3 to 7 W Incandescent lamp. LED lamp 10 to 300 mA dc output.
•Overvoltage category II.
•Operating time OFF to ON state 50 ms max (safety input ON), 100 ms max (Logical AND connection input ON).
•Response time (ON to OFF state) 15 ms max
•Maximum wiring length of safety input and logical AND input 100 m max.
•Vibration resistance frequency 10 to 55 to 10 Hz, 0.375mm single amplitude (0.75 mm double amplitude).
•Shock resistance destruction 300 m/s².
•Shock resistance malfunction 100 m/s².
•Electrical durability 100,000 cycles min.
•Mechanical durability 5,000,000 cycles min.
•Weight 240 g.

Applications.

•Safety measure for hazardous operations maintaining productivity.
•Auto-switching function, safety light curtain.
•Manual switching function, door switch monitors.

Standards

IEC/EN 61508 (SIL3), IEC/EN 62061 (SIL3), EN ISO 13849-1 (PLe/safety category 4)
