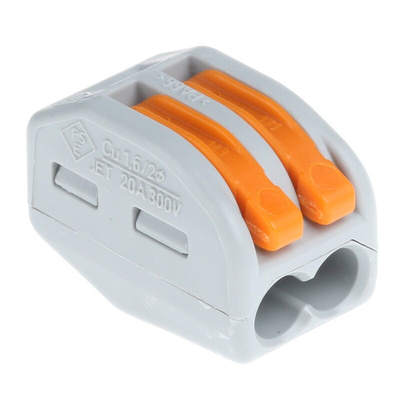

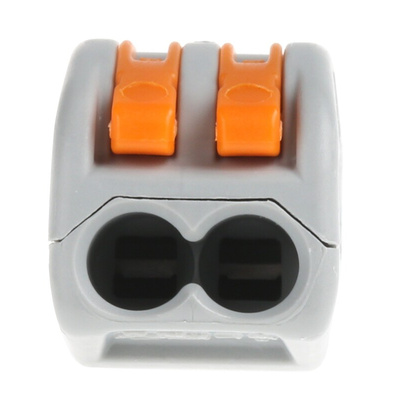

222-412, Wago 222 Series Lever Connector, 2-Way, 32A, 28 → 12 AWG Wire, Cage Clamp Termination

Wago Non-Fused Terminal Block, 400V Voltage Rating, Screwless Connections - 222 Series - 222-412

Make wiring connections in moments with this non-fused terminal block from Wago. All you need to do is lift up the orange levers on top of the block and insert your conducting wires. Then, simply return the levers to their resting position, and the job's done. As it's made from nylon, this unit is highly durable and resistant to wear, making it a good choice for connecting equipment in challenging industrial environments. It's suitable for all conductor types, including stranded, fine-stranded and solid, so it's a real team player.

Features & Benefits

• Two-way configuration for connecting multiple wires
• Current rating of 32A for use in medium-power applications
• Cage clamps securely hold conductors in place without the need for specialised tools
• Takes wire sizes between 28 and 12AWG for versatility
• Maximum continuous operating temperature of +85°C for use in challenging conditions

Applications

• Communication systems
• Industrial pumps
• Lighting controls

Is this non-fused terminal block fire-safe?

Yes, it stops burning in 10 seconds or less in the event of a fire, so it's a safe bet in dangerous work areas.

Approvals

ENEC, UL

222 Series Connectors

Types of Assembly

Wiring Diagram

222-412 Datasheet

Instruction Sheet - 222 - 412
