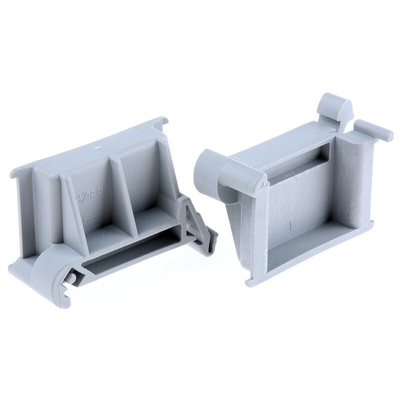

222-510, Wago 222 Series Angled DIN-rail adapter for Use with Mounting Carrier 221-500 or 222-500

222 Series Terminal Blocks

The component in this series offers an all-rounder connection solution for solid, stranded and fine-stranded conductors with different cross sections. Ensuring practical, fast and safe connections for different types and sizes of wiring or conductors.

222 Series Features & Benefits:

Fast and safe connecting
No tools needed

Product Application Information

Fast and safe connections for mains power or automotive wiring such as light fixtures, speakers and gates.

222 Series includes:
4751437 – 222-412, 3-Way Non-Fused Terminal Block
5077011 - 222-415, 5-Way Terminal Block
7581650 – 222-412, 2-Way Non-Fused Terminal Block
Accesssories:
7581654 – 222-500, Fixing Carrier for use with Compact Connector
7581663 – 222-505, Strain Relief Plate for Mounting Carrier
7581666 – 222-510, Mounting Carrier for use with Flexible Conductor

Universal Right Angle Adapter

The right angle adapter is a universal component that snap-on to mounting carriers for DIN Rail mounting assemblies.

Product Application Information

So you’ve got all your wires lined up and connected into position and then you realise it’s in awkward position. These right angle adapter pieces make life easier for such occasions allowing you to push into corners that otherwise would not be an option.

Approvals

ENEC, UL

Angled DIN Rail Adapter for 222 Series

222 Series Connectors

Types of Assembly

Wiring Diagram
