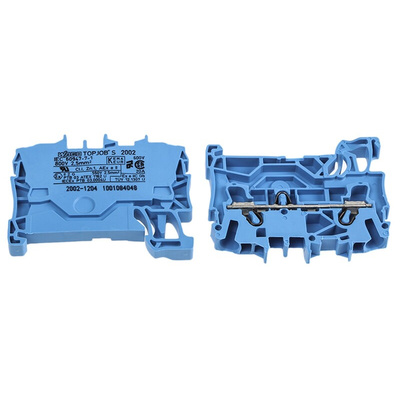

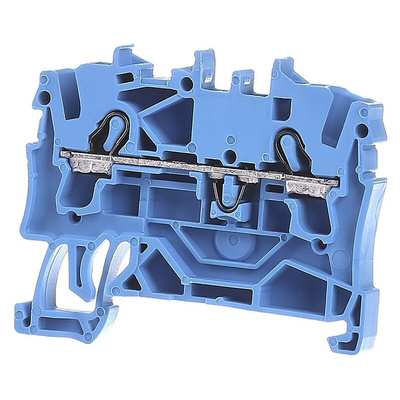

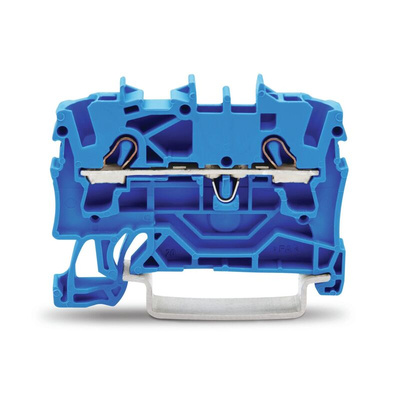

2002-1204, Wago TOPJOB S, 2002 Series Blue Feed Through Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,

Standard Terminal Blocks

Wago Feed-Through Terminal Block, 22A Current Rating, 550V Voltage Rating - TOPJOB S 2002 Series - 2002-1204

This feed-through terminal block from Wago does double duty as it protects and connects your electrical installations. It's an adaptable piece of kit that takes stranded, solid and ferruled wires between 22 and 12AWG, handling two conductors to streamline your setup. A push-in cage clamp design saves time and effort – insert a conductor into the terminal and it's job done. At a width of just 5.2mm, this is a compact item that maximises space on busy DIN rails.

Features & Benefits

• 22A current rating gives the oomph to handle challenging applications
• Blue colour makes for easy coding in installations
• Insulates live wires to improve electrical safety

Applications

• Telecommunications networks
• Industrial control processes
• Consumer electronics
• Medical equipment

Can this feed-through terminal block handle impact-prone operations?

Yes. By firmly clamping a wire in place, this unit keeps circuits running even when things shake or vibrate. It's also approved for use in potentially explosive environments, so it's a reliable choice for your industrial operations.

What's the pitch of this component?

The block has a 5.2mm pitch, so conductors remain separate to curb fire hazards.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

DIN rail terminal 2x2.5mm2 blue
