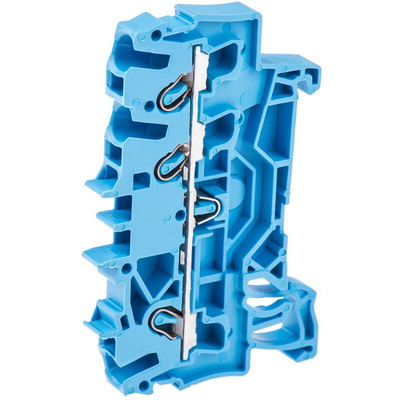

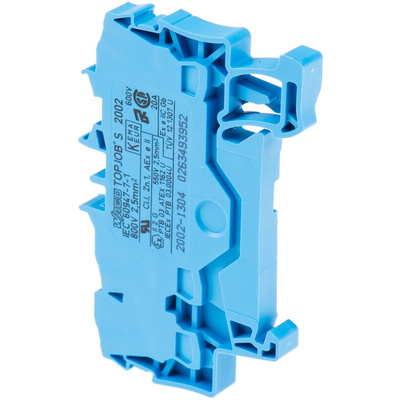

2002-1304, Wago TOPJOB S, 2002 Series Blue Feed Through Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,, Клеммная колодка

7581685
Номер производителя: 2002-1304Производитель: Wago
Цена за шт. (норма упаковки 10 шт)
308.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Standard Terminal Blocks

Wago Feed-Through Terminal Block, 8kV Rated Surge Voltage, 3 x Conductors - TOPJOB S 2002 Series - 2002-1304

Securely link wires in your panel by threading them along this Wago feed-through terminal block. The single-level piece has three connections, offering room to house multiple cables. Its 5.2mm pitch size is compact and a practical pick for smaller conductors. Front-entry wiring gives straightforward access to the terminals without passing wires through awkward spaces. With a rated surge voltage of 8kV, it forms an effective barrier against faulty current flow. Mount it in a snap by clipping it to a DIN rail.

Features & Benefits

• Withstands harsh settings with its broad operating temperature range of -60°C to +105°C
• Current rating of 22A handles high-power electrical operations
• Wire size range of 22 to 12AWG for assembly flexibility

Applications

• Aerospace engineering
• Satellite systems
• Material handling
• Industrial pumps

What's this feed-through terminal block made from?

This piece is made from durable PA66 that delivers insulation protection to prevent electric shock. As the housing is also flame-retardant, it helps to stop embers from spreading.

What type of termination method does this block employ?

It has robust cage clamp termination that fastens the wires securely to their connection points.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

Техническая спецификация
pdfDIN rail terminal 3x2.5mm2 blue
pdfCatalogue - Rail-Mount Terminal Blocks and Connectors
