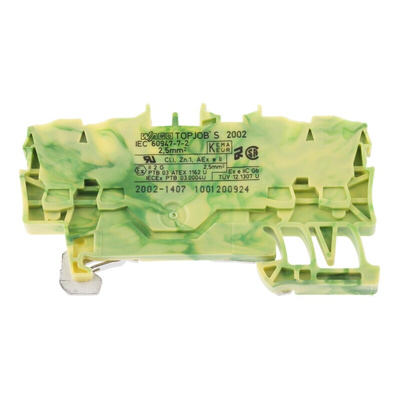

2002-1407, Wago TOPJOB S, 2002 Series Green/Yellow Earth Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,

Standard Terminal Blocks

Wago Earth Terminal Block, 22A Current Rating, 800V Voltage Rating - TOPJOB S 2002 Series - 2002-1407

Be on safe ground with this earth terminal block from Wago. It discharges excess electricity to protect people and equipment. The unit works with up to four conductors to streamline the layout of your installations. It's a cinch to access the front-facing terminals, so you can get wiring done in a jiffy. You can spot it easily in a network during maintenance, thanks to the signature yellow and green colour. At just 5.2mm wide, this single-level component is a sure fit on crowded DIN rails.

Features & Benefits

• Takes 22 to 12AWG wires for versatility
• 800V rating means it's tough enough to handle high-voltage applications
• Weighs just 10.4g, putting minimal strain on enclosures and DIN rails

Applications

• Medical equipment
• Power stations
• Telecommunications networks
• Automation systems

How do I terminate wires when using this earth terminal block?

Terminating wires is a piece of cake, thanks to the push-in cage clamp. Just insert the conductor and the clamp secures it and prevents accidental disconnections.

What wire types can I use with this earth terminal block?

You can use stranded, solid or ferruled conductors with this versatile component.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

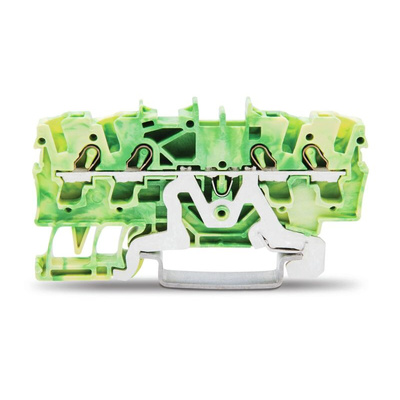

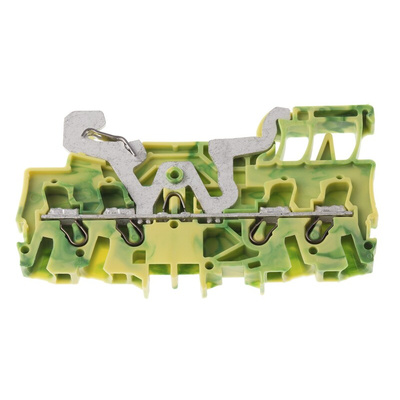

DIN rail terminal 4x2.5mm2 green/yellow
