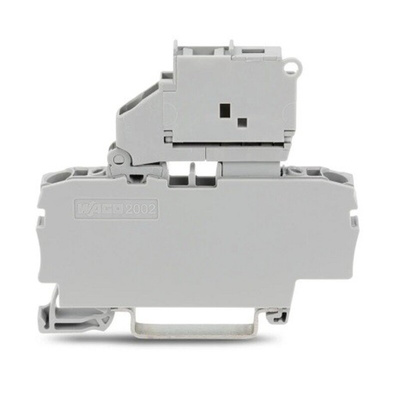

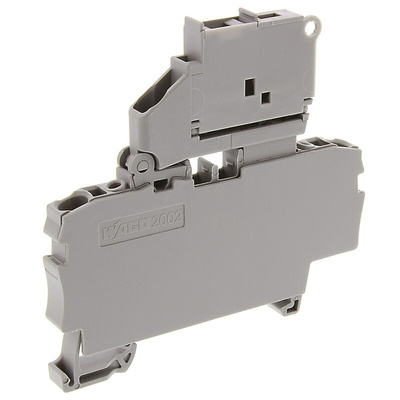

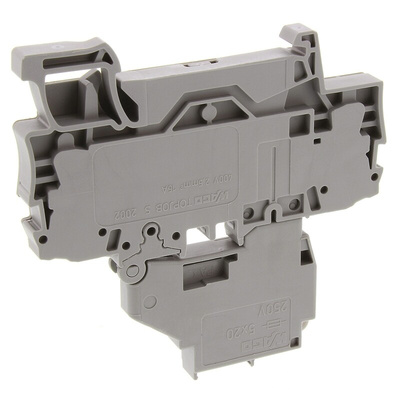

2002-1611, Wago 2002 Series Grey Fuse Terminal Block, 2.5mm², 1-Level, Push-In Cage Clamp Termination, Fused, ATEX, Клеммная колодка

Wago Fused DIN Rail Terminal, 6.3A Current Rating,250V Voltage Rating - 2002 Series - 2002-1611

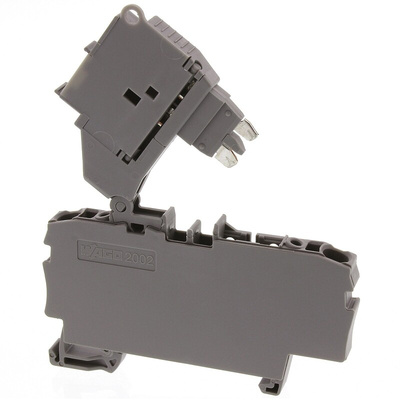

Power up and protect your electrical systems with this fused DIN rail terminal from Wago. It's made from sturdy PA that provides effective insulation to minimise the risk of shock and electrical damage. The two-conductor design includes a pivoting fuse holder to carry miniature 5 x 20mm fuses. Thanks to a voltage rating of 250V, you can rest assured the unit is up to the challenge of heavy-duty applications. Getting set up is easy as can be, as you can simply clip this unit directly onto your DIN rail.

Features & Benefits

• Cage clamp technology reduces wiring time, as there's no need for crimping
• Accepts wire sizes ranging from 22 to 12AWG for versatility
• Withstands a measured shock voltage of up to 6kV for improved electrical safety
• Light weight of 13.5g minimises strain on your equipment

Applications

• Lighting controllers
• Telecommunications
• Civil electrical installations

What size is this DIN rail terminal block?

It has compact dimensions of 57.6 (H) x 6.2 (W) x 66.5mm (D), so it helps to maximise space on a crowded DIN rail.

Terminal fuse disc. 2.5mm2 grey

Datasheet - 2002-1611
