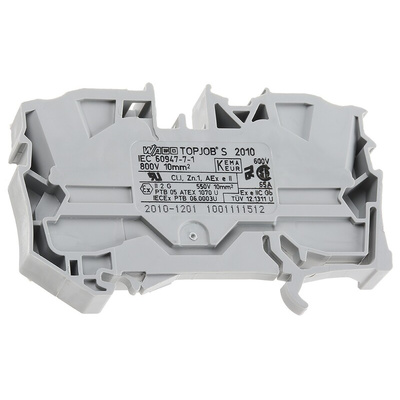

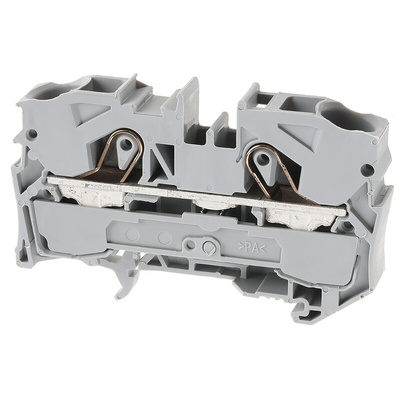

2010-1201, Wago TOPJOB S, 2010 Series Grey Feed Through Terminal Block, 10mm², Single-Level, Push-In Cage Clamp Termination, ATEX,

Wago DIN Rail Terminal Block, 57A Current Rating, 10mm Pitch - TOPJOB S Series - 2010-1201

Ensure secure wiring in your system using this DIN rail terminal block from Wago. This single-level unit features two connection points, making it a good choice for a dual-wire system. As this unit is made from PA, you can count on it to provide effective insulation for protection against electric shock. Thanks to its compact external dimensions of 68 (H) x 10 (W) x 37mm (D), it fits right into small spaces in your setup.

Features & Benefits

• Measured surge voltage of 8kV to withstand current surges
• Current rating of 57A for use with high-power equipment
• Front-entry wiring for convenient connections

Applications

• Automotive engineering
• Power plants
• Telecommunications
• HVAC systems

What wire sizes can I attach to this terminal block?

You can insert wires ranging in size from 20 to 6AWG into this terminal block, giving you flexible wiring options.

What type of termination does this terminal block have?

As this terminal block uses a push-in cage clamp termination method, you can quickly insert your wires without the need for any tools.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

2x10mm2 through terminal grey
