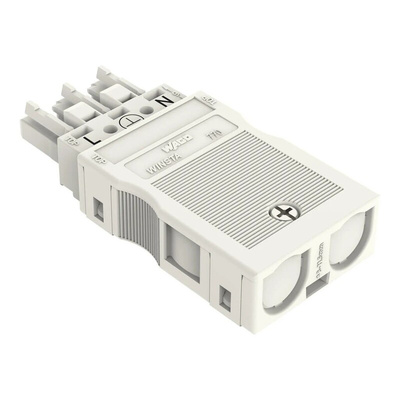

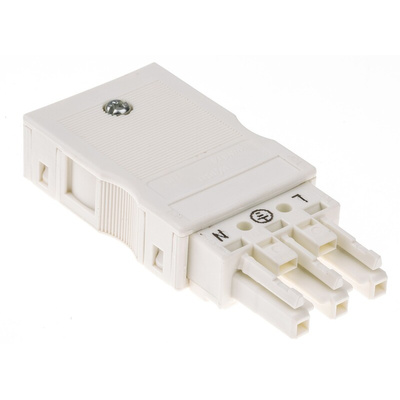

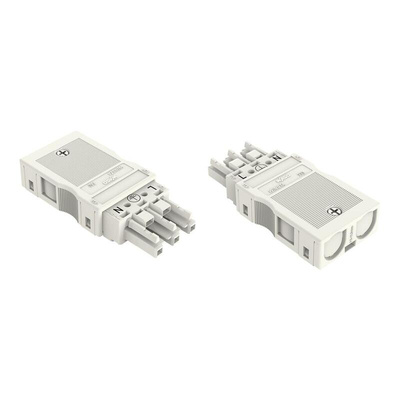

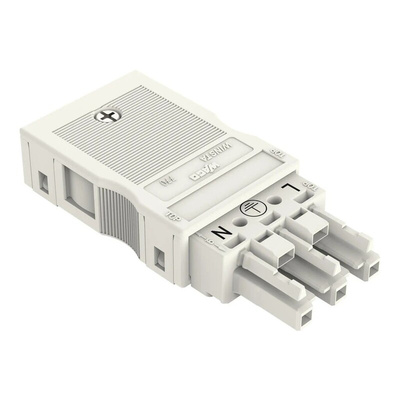

Wago Lighting Connector, 4kV Measured Shock Voltage, 20 to 12AWG Wire Size Range - 770 Series - 770-123
Searching for a reliable way to link lighting elements? This lighting connector from Wago secures cable circuits in a snap. Its cage clamp termination method uses spring pressure to hold wires firmly in place. This means that wiring takes less time and needs minimal maintenance. As mechanical and colour-coded mating features are built into the socket, you can say goodbye to crossed wires and hello to error-free installation.
Features & Benefits
• Current rating of 25A means it stands up to high-power loads
• Connects multiple components at once, thanks to a three-pole, six-way setup
• Compact dimensions of 15 (H) x 34.6 (W) x 75.9mm (D) fit in small spaces
• Integrated test point lets you run checks without disconnecting
• Strain relief housing protects wiring for a safe, long-lasting connection
Applications
• Automation controllers
• Mains lighting sources
• Power engineering
What are this connector's contacts made from?
The contacts are made from tin-plated copper alloy, making them highly conductive and corrosion-resistant for a reliable connection.
Do the cage clamps hold up in extreme temperatures?
Yes, you can rely on the clamps in this unit in a wide operating temperature range between -35°C and +85°C.
