712TN-5, Teledyne PCB Mount High Frequency Relay, 5V dc Coil, DPDT, Реле

Teledyne RF Relay

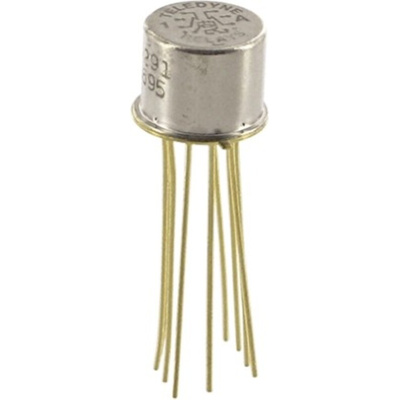

The Teledyne 712 series PCB mount DPDT ultra-miniature RF relay is actuated with 5VDC coil voltage at a frequency of 1GHz. It is a relay with internal transistor driver and coil transient suppression diode. It has a low profile height of 6.99mm, low coil power dissipation and is designed for use when close PCB spacing is required. This relay has unique construction features and manufacturing techniques that provide excellent resistance to environmental extremes and overall high reliability. It is hermetically sealed and gives excellent switching performance from Dry Circuit to 1A. A typical RF application for this relay is in handheld radio transceivers which combine the features of good RF performance, small size, low coil power dissipation and high reliability, making it a preferred method for transmitting/receive switching.

Features and Benefits

Coil power is 450mW
Coil resistance is 50ohm
Contact termination is solder pin
Dimensions are 9.4mm x 6.99mm
Gold-plated contacts
High reliability and excellent resistance to environmental extremes
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
