732-12, Teledyne PCB Mount RF Relay, 12V dc Coil, DPDT, Реле

Teledyne RF Relay

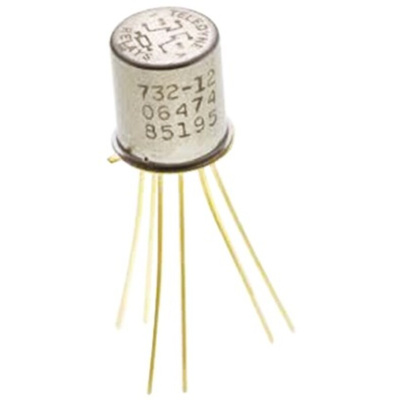

The Teledyne 732 series PCB mount DPDT ultra-miniature RF basic relay is actuated with 12VDC coil voltage at a frequency of 1GHz. It has a low coil power dissipation and is designed for use when close PCB spacing is required. This relay has unique construction features and manufacturing techniques that provide excellent resistance to environmental extremes and overall high reliability. It is hermetically sealed and gives excellent switching performance from Dry Circuit to 1A. A typical RF application for this relay is in handheld radio transceivers which combine the features of good RF performance, small size and high reliability, making it a preferred method for transmitting/receive switching.

Features and Benefits

Coil power is 200mW
Coil resistance is 850ohm
Dimensions are 9.4mm x 9.76mm
Gold-plated contacts
High reliability
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

732 Series Relay Data Sheet

Electromechanical Relays Selection Guide Data Sheet
