RF303-5, Teledyne PCB Mount RF Relay, 5V dc Coil, 3GHz Max. Coil Freq., DPDT, Реле

Teledyne PCB RF Relay

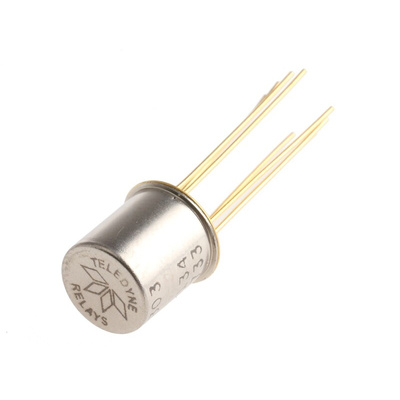

The Teledyne DPDT sensitive repeatable PCB mount RF relay is actuated with 28VDC coil voltage at a frequency of 3GHz. This ultra-miniature relay is hermetically sealed and designed to provide improved RF signal repeatability over the frequency range with excellent signal integrity up to 10Gbps. It has a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability.
Note:
RF300 and RF303 are through-hole mount, GRF303 is a surface mount TO-5 relay

Features and Benefits

Coil resistance is 100ohm
Dimensions are 9.4mm x 9.78mm
Excellent resistance to shock and vibration
Gold-plated contacts
High isolation between control and signal paths
Metal enclosure for EMI shielding with high resistance to ESD
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity

Applications

RF attenuator switching
Wireless LAN

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

RF300/RF303 Series Relays Data Sheet

Electromechanical Relays Selection Guide Data Sheet
