LZX, Siemens Plug In Power Relay, 24V dc Coil, 6A Switching Current, 4PDT, Реле

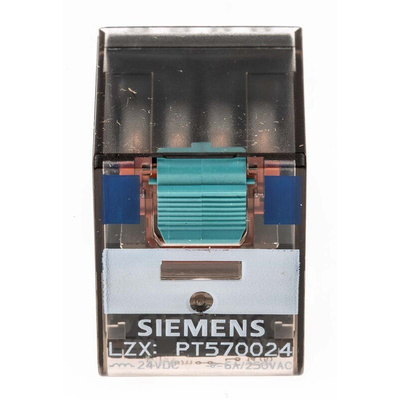

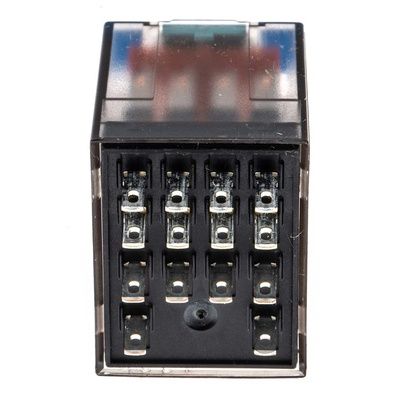

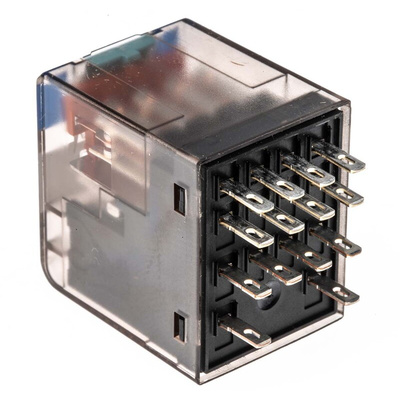

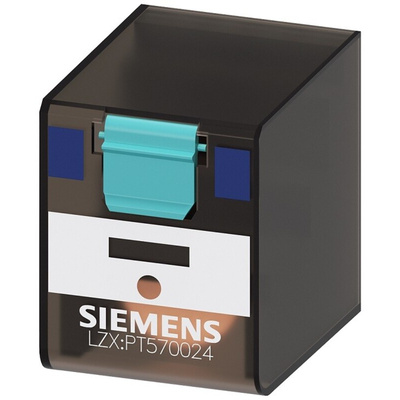

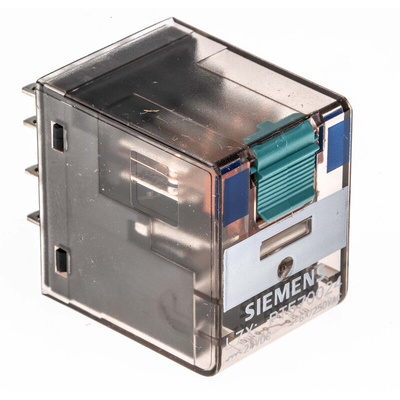

Siemens Non-Latching Power Relay, 24V DC Coil Voltage, 6A Switching Current - LZX Series - LZX:PT570024

Use this power relay from Siemens to open or close the electrical circuit of a PCB. When current flows through the relay, it activates an internal electromagnetic coil. This coil moves the contact to open the circuits allowing current to move through. It's a non-latching relay, which means it automatically goes back to its resting position once the flow stops, minimising energy consumption. Thanks to the plug-in mounting method, you can easily install it onto the PCB. You'll commonly find components like this one used in industrial applications such as push buttons, audio amplification systems and automotive electronics.

• Screw-type terminal for a stable electrical connection
• Compact dimensions of 22.5 (L) x 28 (D) x 28mm (H) to save space in complex setups
• Switching current of 6A for energy-efficient operation

What's the difference between a latching relay and a non-latching relay?

A latching relay will remain in its last contact position even without a consistent current flow, while a non-latching relay can only maintain its contact position if it's receiving current.
