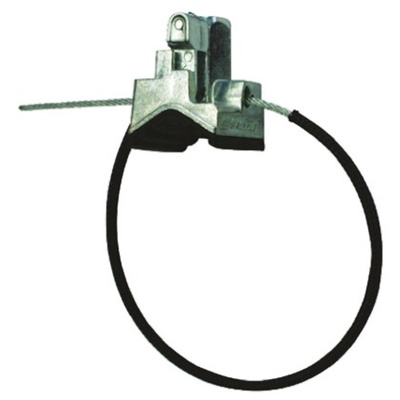

GC2-INS-M8-M10-400MM, Gripple Steel Pipe Clamp 37.5mm 10 → 65mm

Universal Clamp

Universal - for pipe sizes 3 / 8in. (DN10) → 2 1 / 2in. (DN65)
Up to 6 times faster than traditional methods
Replaces more than 11 different pipe clamp sizes
Single piece cast construction - not welded
No tools required for installation
No risk of losing screws on site
Ready to use, retractable sleeve set on wire rope
Inherent vibration insulating properties from the wire rope
Easily stored, reduces waste
Easy to calculate the quantity on a project plan
Load rated at 45 kg with a safety factor 5:1

Note

Load Test and Vibration Test results available see datasheets attached

Standards

Wire rope conforms to EN 123485, Retractable Sleeve: ISO 3795, CEI 754-1, CEI 754-2, ROHS Compliant

Note

Load Test and Vibration Test results available see datasheets attached

Standards

EN123485, Retractable Sleeve: ISO 3795, CEI 754-1, CEI 754-2
