Fluke-700PTPK, Fluke Pneumatic Pressure Pump Kit 41bar, Гидравлический комплект

Fluke 700PTPK Pneumatic Pressure Test Kit

From Fluke the 700PTPK test kit designed for use with the 700G series digital pressure gauges. When used in conjunction with the precision gauges (NOT included) the Fluke 700PTPK kit can be used to conduct fast and accurate pressure measurements. Providing technicians and engineers with a seamless pressure testing and calibration solution.

The Fluke 700PTP-1 test pump is simple to operate. Robust and reliable the pump is capable of generating pneumatic pressure up to 600 psi or 41 bar. It is also compatible with Flukes 717 pressure calibrators and is the perfect device for calibrating transmitters, switches, and gauges.

Supplied in a tough transit case, the portable Fluke 700PTPK test kit is an essential tool for specialist engineers.

Features and Benefits

• Easy to use, rugged and reliable construction
• Produces high pneumatic pressure with minimal effort
• The pump can be easily cleaned without dismantling
• Two pressure ports allowing simultaneous connection
• The adjustable stroke length can be set to limit the pressure per stroke
• Knurled fine adjustment knob enabling precise adjustment of the applied pressure
• For use with Fluke 700G gauges with a range of 600 psi or 41 bar maximum
• Suitable for use with Fluke 700G/TRACK Software enabling the upload of over 8,000 pressure measurements logged in the field to a PC

Applications

The Fluke 700PTPK pneumatic test kit can be used in a wide range of industrial applications. The test kit is the ideal instrument for technicians and specialist engineers to conduct essential testing, maintenance and calibration procedures. Some of the most common are

• Transmitters
• Switches
• Indicators
• Controllers

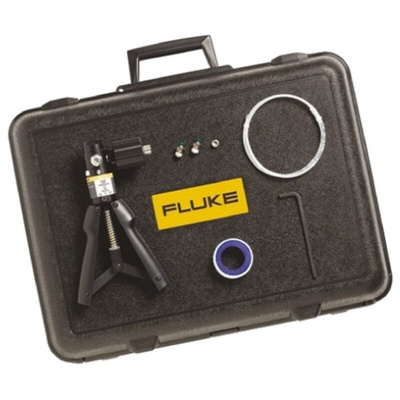

What’s included in the kit?

• 700PTP-1 pneumatic hand pump
• 1m flexible test hose
• Threaded adapters NPT and BSP
• Rugged hard carrying case

Accessories

• Fluke 700G/TRACK software part number 758-8923

Compatible Products

• The Fluke 700PTPK test kit is compatible with the 717 series of pressure calibrators, see typical part number 623-9822
• The Fluke 700PTPK test kit is compatible with the 700G series of digital gauges, see typical part number 758-8904

FLUKE Pressure Pump Kit, With Protective Case, 1/4 NPT Connection - 700G Series - Fluke-700PTPK

Need a pneumatic hand pump to go with your 700G gauge? Pick this pressure pump kit from FLUKE. Simply pair with a FLUKE 700G Series precision calibrator and you get a complete pressure testing solution for applications up to 600psi (40 bar). The kit comprises the pump itself as well as hoses and adapters for connecting to the devices you're assessing. Its contents come in a hard case that protects them from wear and tear while you move about. There's even a convenient space for storing your gauge without needing to disconnect it from the pump beforehand.

Features & Benefits

• Precise results thanks to 0.05% of the full scale accuracy rating
• Stable operation for safe use in potentially explosive environments
• Industry-standard 1/4 NPT connection makes easy work of linking to pneumatic applications for testing
• Light weight of 560g keeps the kit portable

Applications

• Automotive manufacture
• Industrial tools
• Packaging and handling

Does this pressure pump kit log measurements?

Yes, just pair this kit with the necessary 700G gauge and compatible 700G/TRACK software (758-8923). You can then log up to 8493 pressure measurements directly in the gauge's memory and upload them to your PC later.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Supplied with
type":"Supplied with",

Hard case, hoses and adapters
