Silicon Labs EZRadioPRO EZLink Si4431 RF Transceiver Development Kit 868MHz EZLC4431B1-D868

EZRadioPRO® Si4431 EZLink Development Kit

Schematically compatible to the full SDBC-DK3 software development environment the EZLink fast prototyping kit is designed so engineers can test their code in a small footprint design.

Supporting the EZRadio® and EZRadioPRO® platforms, EZLink offers the transceivers (Si4431 or Si4432) configured with 50 Ω matching networks for either the low-band 434MHz or high-band 868MHz / 915MHz for testing code based upon Silicon Labs C8051F930 microcontroller
The EZLink fast prototyping kits comes complete with two EZLink modules, two peripheral/prototyping boards, cables, debug adapter and a full Keil compiler (code size restricted trial version)
Pre-Loaded factory firmware demonstrates a simple 2 way link but the accompanied CD-ROM allows customers to generate simple 1-way and 2-way links of their own
An additional ’messenger-type’ application demonstrates how the product may be used with a simple Windows GUI

Supplied with

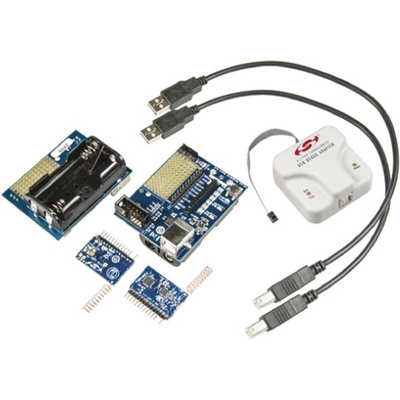

2 x EZLink modules, 2 x Peripheral/Prototyping Boards, 2 x USB cables, Debug Adapter, Keil Complier (code size restricted version), WDS CD-ROM set

Si4432/31/30, ISM Transceiver
