73251-3130, Molex SMA Series, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body, Разъем

Molex 50 Ohm SMA RF Coaxial PCB Jack Connectors

50 Ohm SMA RF coaxial PCB mount Jack Receptacles with a teflon dielectric, gold plated centre contact and brass body with Gold plating except 800-6918 and 800-6936 which have Nickel plated bodies.
These SMA RF coaxial PCB mount Jack Receptacles features are:
759-5293 PCB and Panel mount, supplied with a jam nut and lock washer.
759-5299 Edge mount, 1.6 mm thick PCB, length from PCB edge is 9.53 mm.

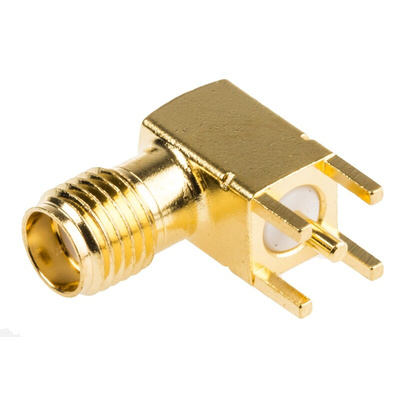

759-5252\tRight Angle, Through Hole
800-6918\tRight Angle, Through Hole Nickel plated
800-6961\tEdge Mount, 1.6 mm thick PCB, length from PCB edge is 12.7 mm.
759-5303\tVertical, Through Hole
800-6933\tVertical, SMT
800-6949\tEdge and Bulkhead mount (no hardware)
800-6936\tRight Angle, PCB and Bulkhead mount, Nickel plated
841-1827 Right Angle, PCB mount, Through Hole
800-6986 Jack to Jack Bulkhead Adapter

Molex SMA RF Coaxial Connectors

The Molex range of high- performance SMA RF Coaxial subminiature Connectors are suitable for microwave frequencies. The SMA design of threaded couplings gives uniform contact of the outer conductors to reduce reflections and attenuation at higher frequencies. High mechanical strength and durability are also ensured by the threaded SMA design.
