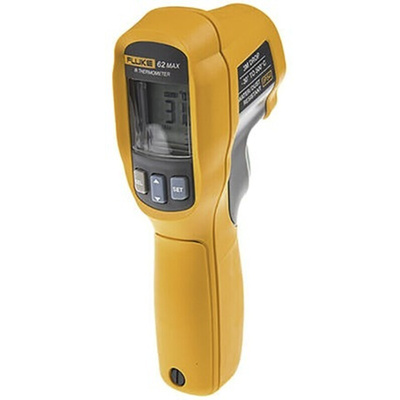

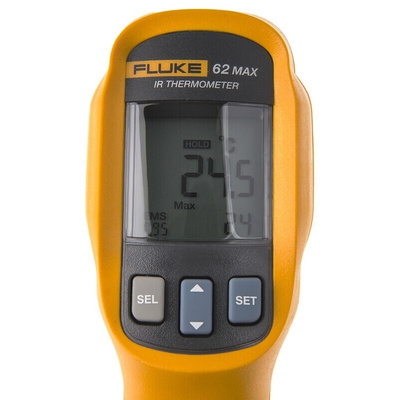

Fluke 62 MAX Infrared Thermometer, -30°C Min, ±1.5 % Accuracy, °C and °F Measurements With RS Calibration

Fluke 62 MAX AND 62 MAX+ Infrared Thermometers

Small, exceptional accurate temperature readings and easy to use, Fluke's MAX series of infrared thermometers are precise and designed to resist a 3-meter drop. IP54 rated for dust and water resistance, these non-contact thermometers are highly durable and robust for tough environments. Featuring large backlit displays, reading data is easy even in dark areas.

The MAX+ (RS 760-0389) has dual rotating lasers that help easily identify the area to be measured, the measurement area is also shown between dots. Fluke's precise infrared laser technology allows accurate and repeatable measurements and can determine the surface temperature by measuring the amount of infrared energy radiated by the targets surface making these laser thermometers ideal for a wide range of applications.

Options:
62 Max Mini Infrared Thermometer (RS 760-0385)
Temperature range -30 °C to 500 °C
Offers single laser targeting for accurate and repeatable measurements
Provides a 10:1 Distance to spot ratio

62 Max+ Infrared Laser Thermometer (RS 760-0389)
Temperature range -30 °C to 650 °C
Precise dual-lasers for more accurate, repeatable measurements
Provides up to a 12:1 Distance to spot ratio

Features and Benefits:

• Ergonomically designed
• Small and lightweight
• Clips to tool belt or belt loop
• Displays minimum, maximum and average temperature, or the difference between 2 measurements
• Hi and lo alarms for rapid display
• Powered by single AA battery
• For non-contact temperature measurements e.g. transformers, motors, pumps to name a few

How accurate are infrared thermometers?

The majority of IR thermometers have a measurement error specification, which shows their best accuracy. The surface being measured can also affect accuracy. Reflective objects result in lower measurements than the actual temperature, whilst non-reflective surfaces give higher measurement. The emissivity of a surface is how effective it is at emitting energy as thermal radiation, as such some IR thermometers have adjustable emissivity settings.
Distance to spot ratio is also essential in providing accurate temperature measurements, if an infrared thermometer is too close to its target area, heat can build up in the device. This can give false readings or damage the sensors, therefore it is essential to always follow a manufacturers guidelines.

Standards

EN/IEC 61010-1: 2001

Approvals

FDA and EN 60825-1 Class II

FLUKE Infrared Thermometer, 10:1 Optical Resolution, 8 to 14 Microns Spectral Response - FLUKE 62 MAX

Need a testing device that can take the heat without putting you at risk? Choose this infrared thermometer from FLUKE. It safely detects temperatures between -30°C and +500°C from a distance. Thanks to built-in laser technology, it even lets you scan objects like hot pipes inside walls, making it a cinch to find hidden issues. A backlit LCD display gives you clear readouts even in dimly lit settings. Simply press down on the trigger to use, and see the temperature reading displayed on the screen in less than half a second.

Features & Benefits

• Light 255g weight means it's easy and comfortable to hold for long periods
• Performs in ambient temperatures from 0°C to +50°C, making it ideal for indoor testing
• IP54 rating indicates it's dust and water-resistant, so is safe to use in demanding environments
• Won't break if accidentally dropped from a height of 3 metres or less

Applications

• Food and drink industries
• Transportation technology
• Health and safety systems

How long does the battery last?

It lasts 10 hours at full capacity, meaning the backlight and laser are on. When you need to replace it, pop in a standard AA alkaline battery, and you're good to go.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

62 MAX/62 MAX + Infrared Thermometer Users Manual

Datasheet

Application Note - FLUKE 62 MAX
