Keithley 2100/230-240 Bench Digital Multimeter, 3A ac Max, 3A dc Max, 750V ac Max, Мультиметр

Keithley 2100 6-digit USB Digital Multimeter

The 2100 6-digit USB digital multimeter offers the combination of high performance and accuracy (38 ppm) appropriate for making critical measurements. It has 0.0038% 1-year basic DC voltage accuracy on the 10V range and 0.013% 1-year basic resistance accuracy on the 10kΩ range. At 6 digits the 2100 delivers 50 triggered readings per second via the USB remote interface. At the fast 4 digit setting, the 2001 reads more than 2000 readings per second into its 2000 reading internal buffer.
The 2100 is rugged comes with removable rubber bumpers and a sturdy handle making it durable and portable for use in various ranges of test settings. The low cost and high precision makes this instrument ideal for R and D engineers, scientists and students and can be used as a bench top digital multimeter or in a system application.
The 2100 is quick to set up and also easy to use, due to its high contrast front panel and keypad. Each function can be distinguished by its colour.

Features and Benefits

Cost-effective critical measurements
11 measurement and 8 math functions
Resistance measuring range 100 Ω → 100 MΩ
Frequency measuring range 3 Hz → 300 kHz
Temperature measuring range -100 to +630°C
Fully specified accuracies on all functions for ISO-compliant results
TMC-compliant USB 2.0 interface for use with SCPI test programs

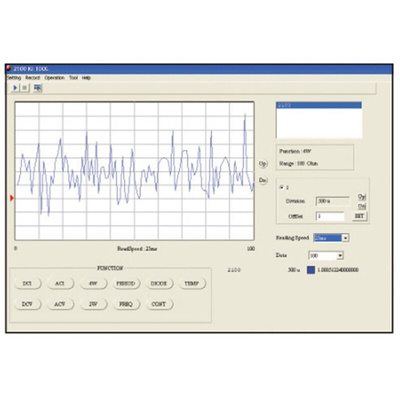

Includes PC software utilities for graphing and data sharing
Rugged construction for durability in bench and portable applications

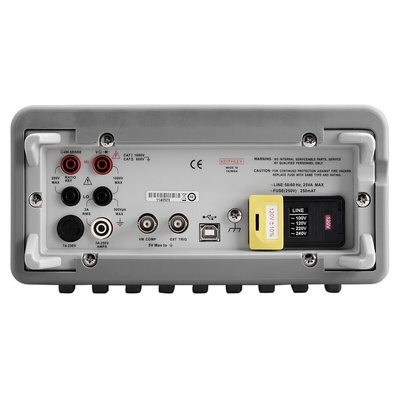

Selectable front/rear inputs facilitate bench or rack use

Applications

Test Engineers - Manual and semi-automatic electrical functional test
Development Engineers - Electrical/electronic circuit and product validation
Service/Calibration Technicians - Electronic product repair and calibration
Research Scientists - Electrical and physics research
Engineering Students - Electronic device and circuits experiment testing

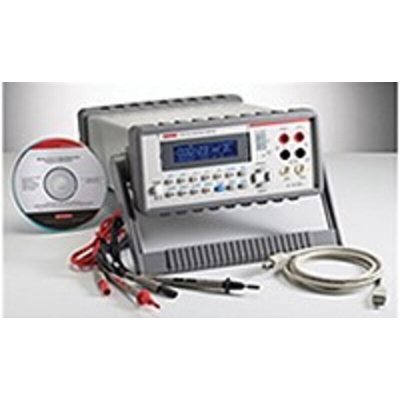

Supplied with

Instruction manual on CD, specifications, LabVIEW driver, I/O layer, USB cable, power cable, safety test leads, KI-tool and KI-link (both Microsoft Word and Excel versions)
