Keithley 2182A/E Bench Digital Multimeter, 100V ac Max, Мультиметр

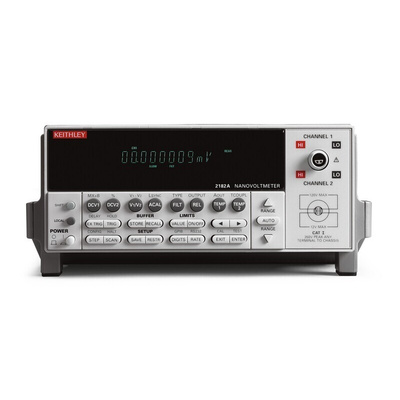

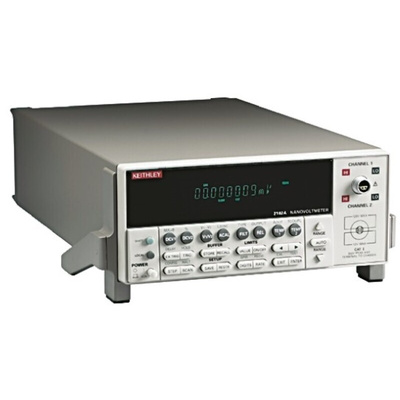

Keithley 2182A/E Nanovoltmeter

The two-channel 2182A is optimised for making stable, low noise voltage measurements and for characterising low-resistance materials reliably and repeatedly. It provides higher measurement speed and better noise performance than alternative low voltage measurement solutions. The ability to select from a wide range of response times facilitates optimising speed/noise trade-offs. Low noise levels are assured over a wide range of useful response times, typically 15nV p-p noise at 1s response time and 40-50nV p-p noise at 60ms.

Features and Benefits

• Make low noise measurements at high speeds, typically just 15nV p-p noise at 1s response time, 40–50nV p-p noise at 60ms
• Delta mode coordinates measurements with a reversing current source at up to 24Hz with 30nV p-p noise (typical) for one reading. Averages multiple readings for greater noise reduction
• Synchronization to line provides 110dB NMRR and minimizes the effect of AC common-mode currents
• Dual channels support measuring voltage, temperature, or the ratio of an unknown resistance to a reference resistor
• Built-in thermocouple linearization and cold junction compensation

Accessories

Nanovoltmeter Accessories

Cable and Interface Accessories
RS Stock No. 8470093 7007-1 (Shielded GPIB cable)
RS Stock No. 2409953 8501-1 (Trigger Link Cable)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

Rack Mount Kits
RS Stock No. 9223003 4288-1 (Single Rackmount Kit)
RS Stock No. 2409953 4288-2 (Dual Rackmount Kit)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Software Updates

Applications

Research
• Determining the transition
temperature of superconductive
materials
• I-V characterization of a material
at a specific temperature
• Calorimetry
• Differential thermometry
• Superconductivity
• Nanomaterials
Metrology
• Intercomparisons of standard cells
• Null meter for resistance bridge
measurements
