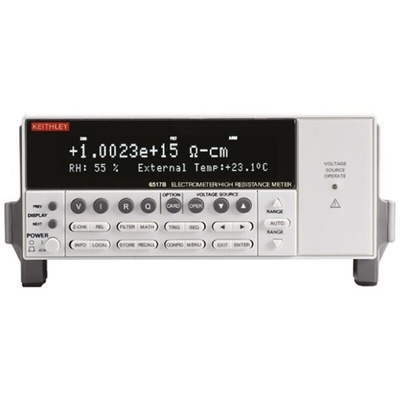

Keithley 6517B Electrometer/High Resistance Meter

The Keithley 6517B Electrometer is a high resistance 5-digitmultimeter that is the worldwide research laboratory standard for sensitive measurements. 6517B provides reliable measurements of current levels down to 10aA, charge levels down to 1 fC including the highest resistance measurements available. The multimeter is capable of measuring the largest voltage range to 200 V with an input impedance exceeding 200 TΩ. Its low noise and drift performance make it ideal for research on single electron devices, highly resistive nanowires and nanotubes, polymers, and electrochemical applications.

Features and Benefits:

Measures resistances up to 10¹⁶

Ω

Additional Benefits:

Compete hardware-software solution for ASTM D257 high resistivity measurements

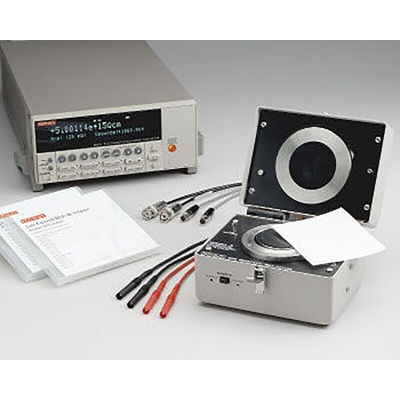

Resistivity test fixture
KickStart high resistivity measurement application
Voltage measurements up to 200 V with 200 Ω input impedance
Alternating polarity voltage sourcing
Measurement method for high resistance measurements
Built-in test sequences for 4 different device characterization tests
Surface and volume resistivity
Surface insulation resistance
Voltage sweeping
GPIB and RS-232 interfaces

Typical Applications:

Nanomaterial characterization
Polymer electrical characterization
Beam measurements
Dosimetry
Device leakage current measurements
Optoelectronic detector characterization
Volume and surface resistivity

What Is Included?

Low noise Triax cable
3-Slot Triax to Alligator clips
2 m (6.6 ft)

Standards

EMC Conforms to european Union Directive 89/336/EEC, EN 61326-1.
Safety Conforms to european Union Directive 73/23/EEC, EN 61010.1.

Supplied with

low noise triax cable 3-slot triax to alligator clips 2m (6.6ft), safety high voltage dual test leads, thermocouple bead probe, interlock connector

6517B Electrometer-High Resistance Meter Data Sheet
