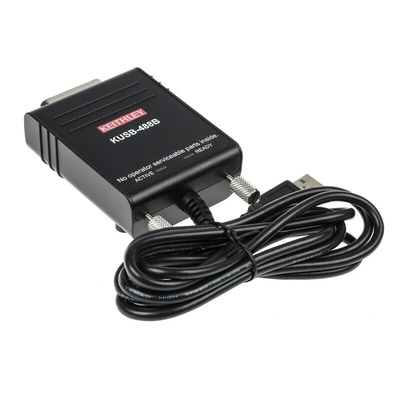

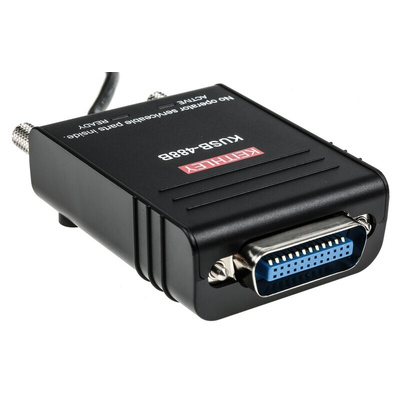

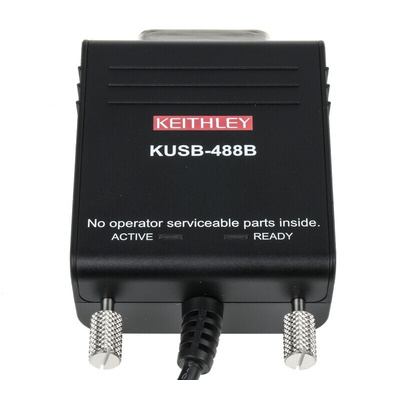

Keithley KUSB-488B USB to GPIB Interface Adapter

USB-to-GPIB Interface Adapter KUSB-488B for USB Port

Keithley GPIB interface solutions make it easy to add standard IEEE-488.2 bus control to any PC system. Keithley model KUSB-488B USB-to-GPIB interface turns any computer with a USB port into a fully functional GPIB controller. Its small form makes the KUSB-488B suitable for use with laptop computers in portable applications and for applications in which the computer has no available PCI plug-in board slots. The adapter is USB 2.0 compliant.

Power (current @ 5Vdc): 500mA
Transfer speed 1.5Mb
Operating temperature 0 → 55°C (10 → 90% RH non-condensing)
European Directive 2004/108/EEC

Note

Suitable for use with all of Keithley's GPIB-capable instruments but requires the 7010 adapter when used with the 428-PROG

Supplied with
type":"Supplied with",

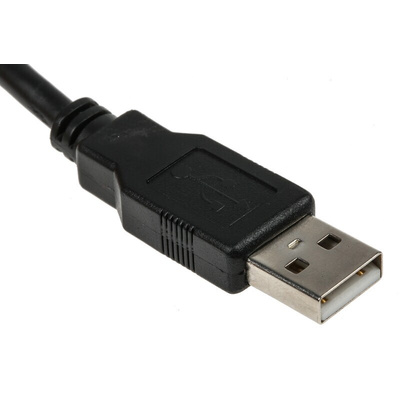

Built-in 2m (6.6ft) cable

Keithley Accessories

Datasheet
