DUB-E100, D-Link 1 Port USB 2.0 Network Interface Card, 10/100Mbit/s, Сетевая карта

D-Link Ethernet Adapter

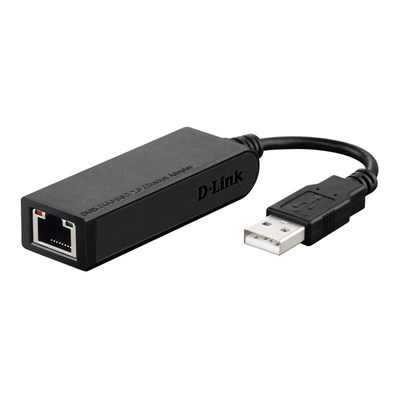

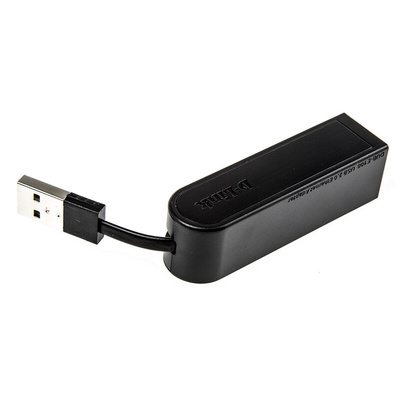

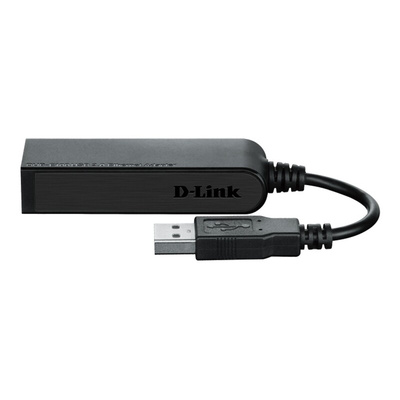

The D-Link Hi-Speed USB 2.0 Fast Ethernet adapter is a high-speed adapter plug into any available USB port on your computer to enable you to connect to an Ethernet network. This adapter eliminates the need to open your computer to install a network card and it also lets you keep your notebook’s expansion slot free for other uses. This adapter extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.

Features and Benefits

True 10/100Mbps network connectivity
Operating voltage is 3.3VDC +/- 10%
Hi-speed USB 2.0 compatible
Auto 10/100Mbps speed detection
Plug and play
Embedded 7K x 16bit SRAM buffer
Energy saving suspend/resume function
Runs Windows 98 SE, ME, 2000, XP
Supports suspended mode and remote wakeup
Supports full and half duplex in fast Ethernet
Operating temperature ranges between 0°C and 40°C

Certifications

Emission (EMI) FCC Class B
CE certified
C-Tick
FCC Class B
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T, TX, and T4 compatible

DUB-E100 Datasheet (Designchange)
