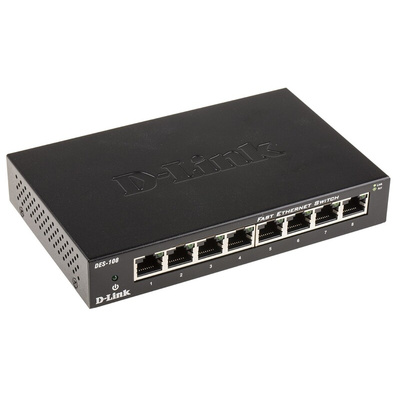

DES-108/B, D-Link DES-108, Unmanaged 8 Port Network Switch UK, Коммутатор

D-Link Desktop Switch

The D-Link 8-port Gigabit Fast Ethernet unmanaged Switch 10/100Mbps that allows you to quickly set up a wired network. DES-108 Connect to multiple computers together to share files and folders or connect it to a router to share an Internet connection. It provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations.

The DES-108 switch features both D-Link Green Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality.

The DES-108 is great for anyone planning to upgrade to Fast Ethernet. It has been designed for areas where traffic on the network and the amount of people using it is increasing.

Features and Benefits

Switching capacity is 1.6Gbps
Plug and Play operation
Fast Ethernet ports
Non-blocking architecture: simultaneous full speed on all ports
Fanless, silent operation to fit in any environment
Quality of Service (QoS) queues for traffic prioritisation
Auto MDI/MDIX crossover for all ports
Solidly built with metal housing
Supports Jumbo Frames
D-Link Green technology
Supports 802.1p QoS
Saves energy and increases the product’s lifespan
UK Plug
Network cables:100BASE-TX:UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.)

Applications

The DES-108 is an unmanaged 10/100Mbps Fast Ethernet switch that offers solutions for the growing bandwidth needs of small Ethernet workgroups. It is ideal for:

Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image, and video information across the network in almost no time
Small companies
It connect to your computers, printers, copiers, and other office equipment

Certifications

IEEE 802.3 x Flow control
IEEE 802.3x Flow Control
IEEE 802.1pQoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
VCCI Class B
cUL approved
CB

Supplied with
type":"Supplied with",

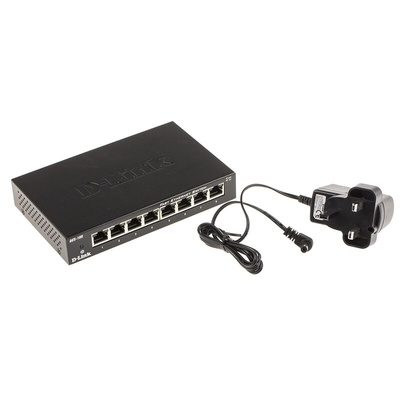

DES-108: 8-Port 10/100Mbps Ethernet Switch
External Power Adapter
Wall Mount Kit
Quick Installation Guide

DES-105 / DES-108 5/8 Port Fast Ethernet Switches Data Sheet

Manual - DES-108

Installation Guide - DES-108
