DGS-108/B, D-Link DGS-108, Unmanaged 8 Port Network Switch UK, Коммутатор

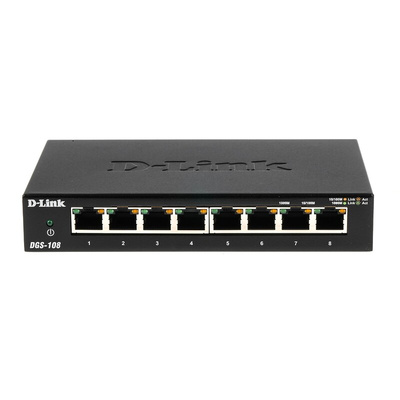

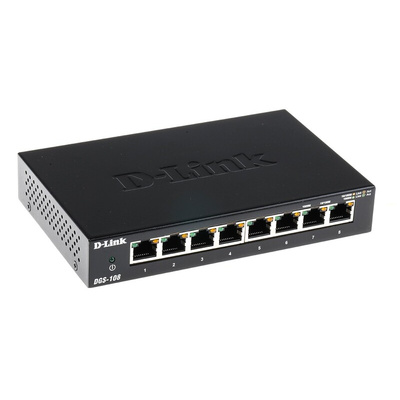

D-Link 8 Port Gigabit Desktop Switch

The D-Link 8-port Gigabit Fast Ethernet unmanaged Switch, achieving speeds up to 200Mbps is ideal for fast file transfers, and smooth media streaming. The switch provides a quick, easy, and economical way to add high-speed networking to home offices and small/medium businesses. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

These Switches come with Ethernet ports which have an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance.

The DGS-108 also features D-Link’s Green Ethernet technology which saves power when the switch is active and inactive and provides energy savings and a longer life for the device.

Features and Benefits

8 x Gigabit Ethernet ports
Switching Fabric is 16Gbps
Network cables:100BASE-TX, 1000BASE-T:UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.)
Plug and Play for easy operation
Non-blocking architecture: simultaneous full speed on all ports
Fanless, silent operation to fit in any environment
Quality of Service (QoS) queues for traffic prioritisation
Solidly built with metal housing
Cable diagnostics function to detect faulty network cables
D-Link Green technology, saves energy and increases the product’s lifespan
Robust design – sturdy metal housing
IEEE 802.3az Energy-Efficient Ethernet (EEE) reduces power consumption when ports are not in use, conserving energy and lowering costs
Front Ethernet ports – LED light indicators make it easy to distinguish the link status
Weight: 415g
UK Plug

Applications

The DGS-108 is an unmanaged Fast Ethernet switch that offers solutions for the growing bandwidth needs of small Ethernet workgroups. Gigabit Ethernet transfer speeds make it ideal for transferring files quickly and online gaming. It is ideal for:

Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time
Small companies
It connect to your computers, printers, copiers and other office equipment

Certifications

VCCI Class B
cUL approved
CB
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1pQoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)

DGS-105 / DGS-108 5/8 Port Gigabit Ethernet Switches Data Sheet

Datasheet - DGS-108
