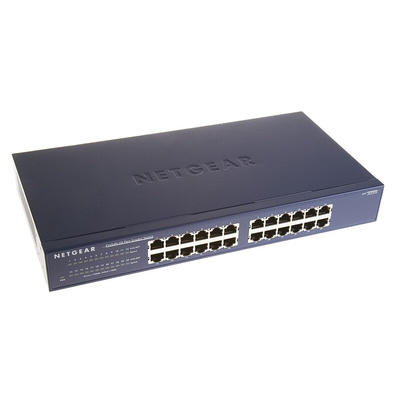

Netgear Unmanaged 24 Port Gigabit Ethernet Switch

The Netgear JGS524 series unmanaged Ethernet switch has 24, RJ45 ports. It has a supply voltage rating between 100VDC to 240VDC. This is capable of powering 2000Mbps of data throughput in full-duplex mode per port. It has Fast, auto-switching and auto-sensing 10/100/1000 Mbps Ethernet connection. This switch provides a viable way to increase your network’s capability. It provides expanded connectivity for small office networks so that users never have to compete with each other for bandwidth. Network users can take advantage of their ability to send and receive a large amount of multimedia, image and video information in no time at all.

Features and Benefits

230,000 hours MTBF
Easy integration of 10Mbps, 100Mbps and 1000Mbps devices
Switching capacity of up to 48Gbps
Ideal for graphics, multimedia and other applications - send and receive large amounts of multimedia, image and video information quickly
Auto uplink
Europe plug type
Plug and play, begins working as soon as it is powered on
Compact size for desktop or for mounting in a standard 19-inch rack
Secure, durable metal housing includes a Kensington locking slot for theft prevention
Compatible with PC, Macintosh, Linux and Unix operating systems
Supports jumbo frames up to 16 KB
Auto power-down mode saves energy when port is unused
Auto green mode detects cable length and adjusts power usage to save energy
24 switched ports provide bandwidth for PCs, servers or switches
Unmanaged operation
Easy to set up and use
Weight - 1.62 kg

Certifications

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x flow control
CE Class A, included EN 55022 (CISPR 22) and EN 55024
FCC Part 15 Class A
VCCI Class A
C-Tick Class A
UL approved
cUL approved
CE LVD certified

Supplied with
type":"Supplied with",

24-port Gigabit Ethernet Switch
Power cord
Installation guide
Rack-mount kit
Rubber footpads for tabletop installation
Warranty/support information card

Datasheet - JGS516/JGS524

Installation Guide - JGS516/JGS524
