RS PRO Motorised Valve, Ball type , 1000 psi, Клапан

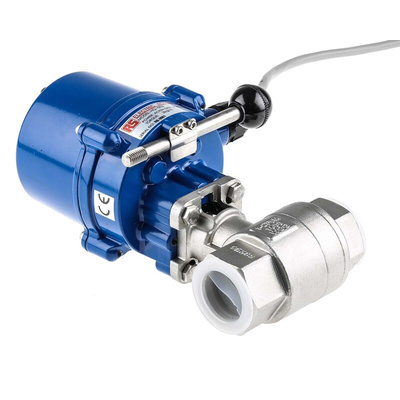

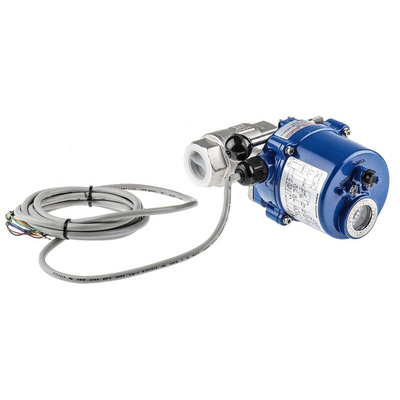

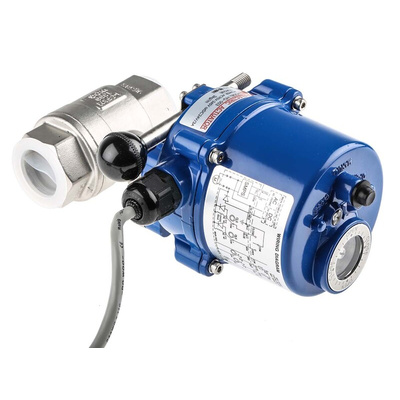

RS PRO Ball Stainless Steel Valve with Electric Actuator, 1 in BSP

Need to control the flow of liquid or gas in one of your systems? This RS PRO motorised valve contains a ball mechanism with a non-sticking movement to stop the pressure from dropping when the valve is open, allowing you to control the flow precisely.


It has an actuator that uses electricity to convert the control signal, causing the valve to close or open. This automated function decreases the risk of human error and makes it simple to use. The valve contains a bright LED lamp indicator that displays whether the valve is closed or open, allowing you to quickly and easily identify the system's status.


It has a manual override push button that you can use to activate the manual lever in the event of an electrical fault. The valve can withstand a maximum pressure of 1000 pounds per square inch (psi), so it can handle most high-pressure applications. It's made from corrosion-resistant stainless steel, making it a popular choice for use in harsh environments.

Features and Benefits

• Connection of 1 in BSP (British Standard Pipe)


• NC (normally closed) default valve position


• Maximum working pressure of 1000 psi


• Spring return type


• Thread size of 1 in


• Ball valve type

RS Pro Datasheet

Line drawing

Datasheet

Series 22 catalogue
