CHIPI-X10, FTDI Chip 100mm Male USB to Male RS232 White KVM Mixed Cable Assembly, Кабель

CHIPI-X10 USB to RS232 Converter Cable with Enclosure, FTDI Chip.

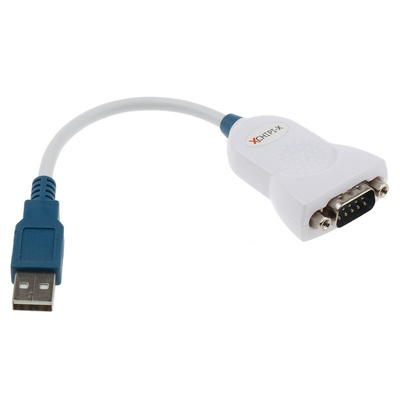

Chipi-X10 converter cable is a ESB to RS-232 level full handshake UART cable plus it also acts as an evaluation tool for the FT231XS chip. The cable is complete with a male DB9 (DE9) and a USB-A plug linked by the 10 cm cable. The complete unit provides you with a connection for USB communication. The Converter is RoHS compliant and is Pb-free.

Features and Benefits.

•Chipi-X10 Converter Cable.
•ESB to RS-232 full handshake UART cable.
•Evaluation tool of FT231XS chip.

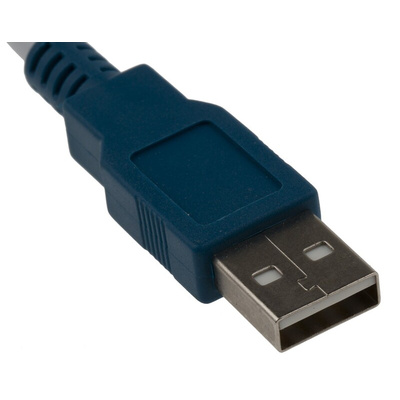

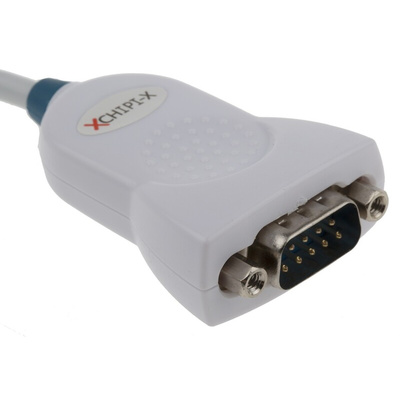

•Male DB9 and USB-A plug.
•USB Port Powered.
•UART supports 7 or 8 data bits (1 or 2 stop bits).
•Data transfer rate 300 baud to 250 kilo-baud (RS232 voltage levels).
•512-byte buffer (receive).
•512-byte (transmit buffer).
•ESD Protection.
•Low operating and USB suspend current.
•Low USB bandwidth consumption.
•USB 2.0 Full speed compatible.
•Latch-up free.
•Cable length 10 cm (100 mm).
•Enclosed.
•Operating temperature -40°C to 85°C.

Typical Applications.

•Audio
•Communications.
•Consumer Electronics.
•Imaging.
•Industrial.
•Networking.
•Portable Devices.
•Sensing & Instrumentation.
•Video.
•Wireless.

Converter Support Available.

Converters are supported with Microsoft WHQL certified VCP (Virtual Com Port) drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.com.

Standards

RoHS Compliant.

Approvals

CE, FCC
