Keysight Technologies 33512B Function Generator, 1μHz Min, 20MHz Max, FM Modulation, Variable Sweep - RS Calibration, Генератор функций

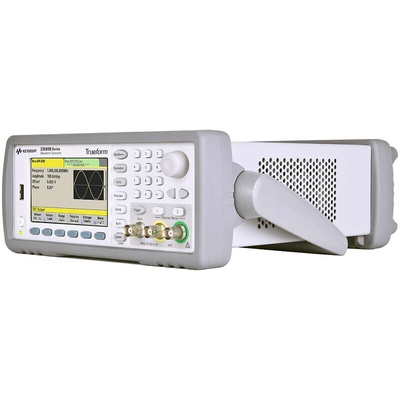

Keysight Technologies Arbitrary Waveform Generator

The Keysight Technologies arbitrary waveform generator has 2 channels and a range of up to 20MHz and with a RS calibration. It incorporates true form signal generation technology, which combines the best of direct digital synthesis (DDS) and point-by-point architectures. This generator delivers increased performance at a price associated with DDS only. It offers lower jitter and lower harmonic distortion than alternative instruments in the same class. The jitter performance gives users an ability to place edges more accurately, helping reduce timing errors in circuit designs. The total harmonic distortion is less than 0.04% and non-harmonic spurs are less than 75dBc. This means clean signals that do not introduce noise, giving users greater accuracy. The jitter rate, together with 8.4ns rise and fall times, enables users to set trigger points more accurately. This function generator has a 16-bit resolution, which facilitates output changes down to 1uV, providing users with an ability to test low voltage circuits and designs.

Features and Benefits

Waveform generator with arb capability
Variable bandwidth noise
Waveform sequencing
Pseudo-random binary sequence pattern generation
Waveform summing and combining capability

Applications

Integrated electronic testing
Educational institutions
Embedded systems
Digital circuits
Analogue signal processing
Laboratories

Certifications

EN61010
CE certified
IEC 61010-1:2001
CSA C22.2 61010-1
UL 61010-1 approved
IEC/EN 61326-1
ICES/NMB-001
AS/NZS CISPR 11
