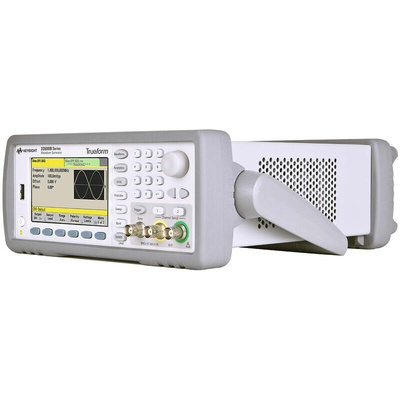

Keysight Technologies 33520B Function Generator, 1μHz Min, 30MHz Max, FM Modulation, Variable Sweep - RS Calibration, Генератор функций

Keysight 33500B Series Waveform Generators

Keysight 33500B Series waveform generators incorporate Trueform signal-generation technology, which combines the best of direct digital synthesis (DDS) and point-by-point architectures. It delivers increased performance at a price associated with DDS only. The 33500B models offer lower jitter and lower harmonic distortion than alternative instruments in the same class.

The jitter performance gives users the ability to place edges more accurately, helping reduce timing errors in circuit designs. Total harmonic distortion is less than 0.04% and non-harmonic spurs are less than 75dBc. This means clean signals that do not introduce noise, giving users greater accuracy. The jitter rate, together with 8.4ns rise and fall times, enables users to set trigger points more accurately. The 16 bit resolution of the 33500B models facilitates output changes down to 1uV, providing users with the ability to test low-voltage circuits and designs.

• Waveform summing and combining capability
• Variable-bandwidth noise
• Waveform sequencing
• Pseudo-random binary sequence pattern generation

Keysight Technologies Function Generator, 2 Channels, 40ps Edge Jitter - 33500B Series - 33520B

Looking for a testing element that generates high-quality signals with minimal noise? Choose this waveform generator from Keysight Technologies. It has a typical crosstalk of less than -85dB to reduce the risk of interference. Thanks to its maximum edge jitter of just 40ps, it allows you to place edges accurately to minimise the risk of timing errors when setting trigger points. Thanks to its built-in Ethernet, LAN, USB and GPIB ports, it connects to other devices with ease.

Features & Benefits

• Bandwidth of 30MHz for use in heavy-duty applications
• Wide operating temperature range between 0°C and +55°C for use in tough conditions
• Low total harmonic distortion of 0.04% ensures good signal integrity
• Compact dimensions of 88.3 (height) x 212.8 (width) x 272.3mm (depth) for ease of handling

Applications

• PCB manufacturing industry
• Instrumentation and control
• Robotics and automation

What types of modulation are available on this device?

This device has a wide range of modulation types to choose from, including AM, FM, PM, FSK, BPSK and PWM. This makes it a highly versatile choice.
