Keysight Technologies 33522B Function Generator, 1μHz Min, 30MHz Max, FM Modulation, Variable Sweep - RS Calibration, Генератор функций

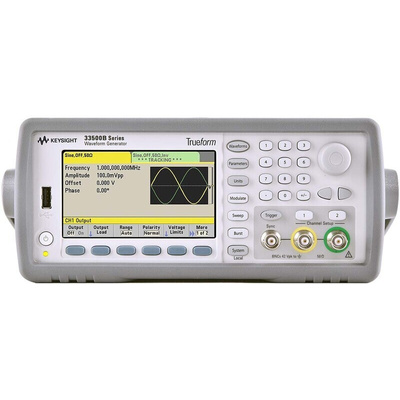

Keysight Technologies Function Generator, 2 Channels, 30MHz Bandwidth - 33500B Series - 33522B

Looking for a DDS alternative that doesn't skip points? This Keysight Technologies dual-channel function generator uses Trueform technology to create accurate point-by-point waveforms. As the device produces less than 40ps of jitter, you can place edges precisely and reduce the risk of timing errors. Thanks to its 16-bit resolution, you can make output changes as small as 1μV for a high degree of accuracy. This generator also features a low harmonic distortion of 0.04% to produce clear signals.

Features & Benefits

• Built-in LAN and USB slots let you quickly connect to your network
• Large colour display is easy to read
• Anti-alias filtering for a clear, smooth waveform
• Wide operating temperature range of 0°C to +55°C for use in harsh environments

Applications

• Research and development
• Electronics testing
• Laboratory equipment

How can I create custom or advanced waveforms?

You can use the Waveform Builder Basic or the BenchLink Waveform Builder Pro software to create custom and advanced waveforms for testing. You can also use Excel or MATLAB to capture frequencies and download them to your system for editing.
