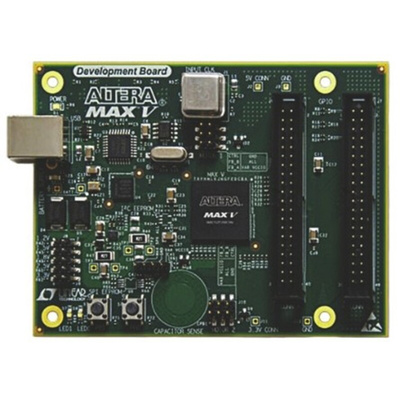

Altera DK-DEV-5M570ZN MAX V Development Kit 5M570Z, Стартовый комплект

MAX V CPLD Development Kit

The Altera MAX V CPLD Development Kit is a complete design environment that includes both the hardware and software you need to prototype the most common CPLD applications, including I/O expansion, interface bridging, power management control, initialization control, and analogue interface control.

Measure CPLD power (V_CCINT and V_CCIO)
Bridge between two different I/O voltages (adjustable V_CCIO on CPLD Bank 2)
Interface to external functions or devices via four connectors
Read and write to memories
8Kbit user Flash memory (UFM) available within the 5M570Z CPLD
I²C or SPI EEPROMs (user installed)
Come up to speed quickly with your CPLD design by reusing the example designs provided
Re-use the kit’s PCB board and schematic as a model for your design
Embedded USB-Blaster circuitry for CPLD configuration
User LEDs, push-buttons, and capacitor sense button
Standard PC speaker header
Two DC motor headers
GPIO connectors to mate with daughtercards

Supplied with

USB cable, license-free Quartus® II Web Edition software

Altera MAX V CPLD Development Kit User Guide
