XB24-API-001, Digi International Xbee ZigBee Module, 0dBm, UART Pan

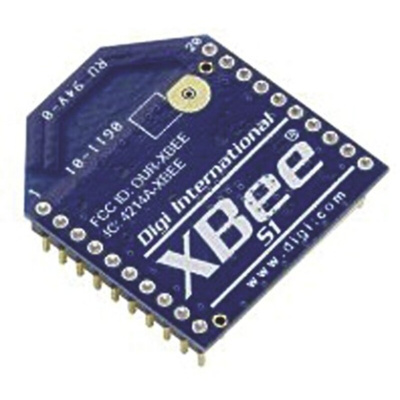

XBee OEM IEEE 802.15.4 RF Transceiver Module

The XBee OEM RF module is IEEE 802.15.4 compliant and operates in the 2.4GHz ISM Band. With its high receiver sensitivity it can provide long-range line-of-sight communication for up to 100m.

Carrier frequency: 2.4GHz ISM band with 16 channels
RF Power Output: 0dBm
Receiver Sensitivity: -92dBm @ 1% PER
Interference control: Direct Sequence Spread Spectrum (DSSS)
OTA Date Rate: up to 250kbps
Host communication: serial UART with RTS/CTS flow control
Supported network topologies: Point-to-Point, Point-to-Multipoint & Peer-to-Peer
Source/Destination Addressing
Unicast & Broadcast Communications
AES-128 encryption
Antenna: Integral Whip ( RS 102-721), External via U.FL (RS 102-709), PCB (RS 761-7403)
6 channel 10-bit ADC
8 x GPIO pins
Power supply: +2.8V to +3.4Vdc
Operating temperature range: -40 to +85°C
Dimensions: 24.4 x 27.6 x 7mm DIL format
Applications: Wireless sensor networks, long-range communication for the Internet of Things (IoT)

Approvals

FCC, IC, ETSI

XBee 802.15.4 OEM RF module is an embedded solution providing wireless end-point connectivity to devices. The module uses the IEEE 802.15.4 networking protocol for fast point-to-multipoint or peer-to-peer networking. This module is designed for high-throughput applications requiring low latency and predictable communication timing.
1 mV power output and at a range of 0 – 90m.

XBee RF Module with PCB Antenna 1mW Datasheet
