2320144, Phoenix Contact QUINT-PS/48DC/24DC/5 DC-DC Converter, 24V dc/ 5A Output, 30 → 60 V dc Input, 120W, DIN Rail, Преобразователь

Phoenix Contact QUINT DC to DC Converters

Primary switched QUINT DC-DC converter with maximum functionality and SFB (Selective Fuse Breaking) technology.
QUINT DC-DC converters magnetically and quickly trip circuit breakers with six times the nominal current, for selective and cost-effective system protection. The high level of system availability is also ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
DC-DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by electrical isolation.

Features and benefits:

• Power Boost allows reliable starting of difficult loads
• Preventive function monitoring indicates critical operating errors before they occur
• Output voltage regenerated even at the end of long cables
• Support conversion to various voltage levels
• Electrical isolation for setting up independent supply systems
• Transient surge protection

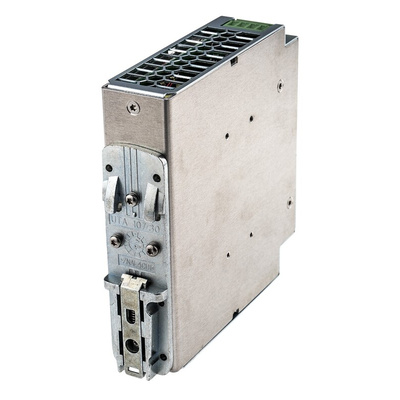

• Horizontal DIN Rail NS 35 mounting

Typical applications:

Ideal for use in many industries including, automotive, machine building, material handling, building automation, and so on. DC-DC converters are used in applications where unregulated DC voltages result in interference at the load.
Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, with protective coating, input: 24 V DC, output: 24 V DC/5 A

• Wide-range voltage input
• Galvanic isolation
• Reverse polarity protection
• Preventive function monitoring
• Reliable starting of difficult loads with POWER BOOST static power reserve
• Fast tripping of standard circuit breakers with dynamic SFB technology power reserve

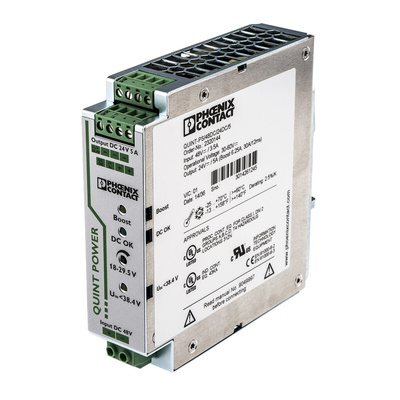

Phoenix Contact DC to DC Power Supply Converter, 48 V DC to 24 V DC - QUINT-PS/48DC/24DC/5 - 2320144

Prevent unregulated DC voltages from damaging electrical circuits with this DC to DC power supply converter from Phoenix Contact. It's coated with a conformal film for protection against dirt, heat and chemicals, which makes it suited to industrial applications.
This technologically advanced converter maintains a reliable output of 12 V by instantly reacting to power surges or loss of electrical supply. Its power-boost function reduces the chance of start-up failure, even when operating under heavy electrical loads. Intuitive monitoring detects problems before blow-outs occur.
This converter is able to regenerate voltage at the end of a long cable, making it ideal for situations where complex and lengthy electrical cords are required.

• Input voltage range of 30 V DC to 60 V DC
• Isolation voltage of 1.5 kV DC
• Load regulation of 1%
• Operating temperature range of -25°C to +70°C
• DIN rail mount type
• Single output
• Output current of 5 A
• Output voltage of 24 V DC
• Output voltage adjustment range of 18 V to 29.5 V
• Power rating of 120 W
• Dimensions of 130 (L) x 32 (W) x 125 mm (D)
