GSM-Q2403, Quasar RS232 GSM/GPRS Modem, Модем

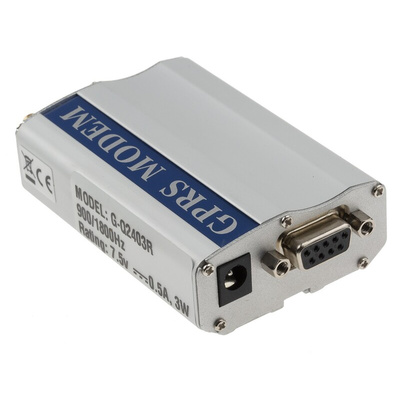

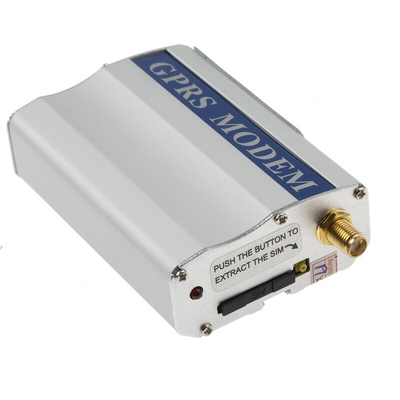

GSM-Q2403 GSM/GPRS RS232 Modem

The Quasar UK GSM-Q2403 is a GSM/GPRS Modem that can add cellular network connectivity to PCs and other terminal devices, ideal for applications where a fixed phone line is unavailable.

The modem incorporates the Wavecom 2403 GSM engine offering Circuit Switched Data (CSD) calls, SMS functionality and internet access. The GSM-Q2403 interfaces with a host device via a RS232 connector with power being provided via the included supply. The modem is housed within a rugged aluminium enclosure to provide protection in demanding environments. An integral SIM card holder accepts the standard mini-SIM format.

Features

• Dual Band 900/1800 MHz for UK Use
• Fax, SMS, Data and Internet
• Integral SIM Card holder
• Wavecom 2403 GSM Engine
• Rugged Extruded Aluminium Enclosure
• Compact Form Factor 76 x 54 x 25mm
• RS232 Interface
• SMA Antenna Connection
• LED Indication of Operation
• Supply Voltage 6 Vdc to 36 Vdc

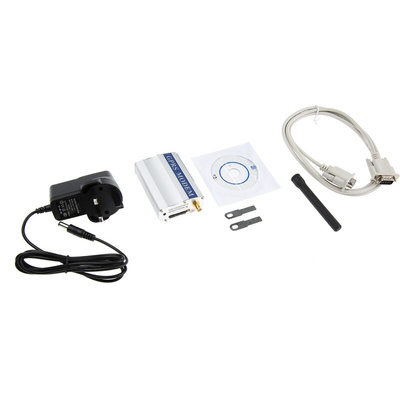

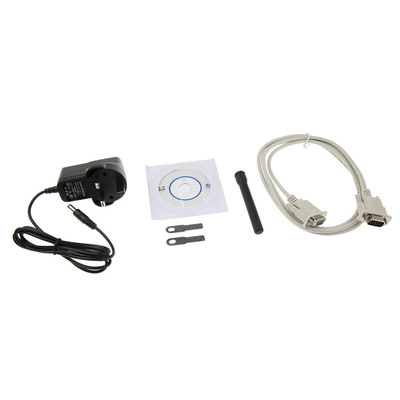

Package Contents

• GSM Modem
• SMA Antenna
• UK Power Supply
• RS232 Lead

Note

SIM card not included
