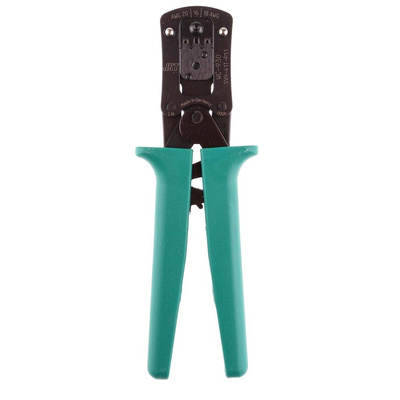

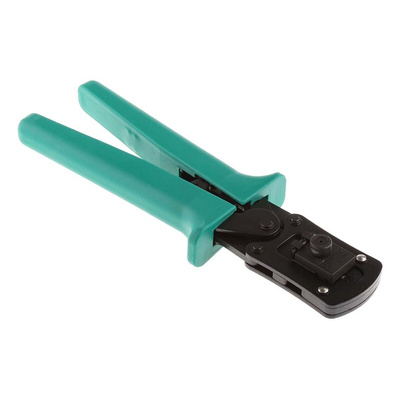

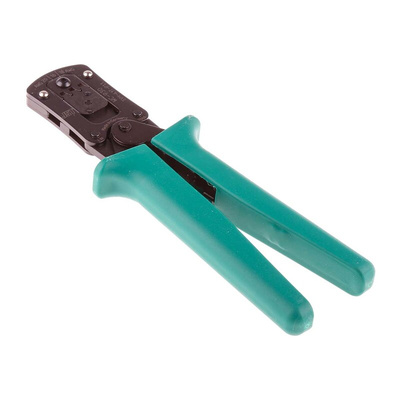

JST WC-930 Hand Crimping Tool for VH Series Contacts

The WC-930 hand crimping tool is an easy to use parallel action hand crimping tool for crimping loose piece SV series crimp contacts on to wire. This WC-930 hand crimping tool features a ratchet mechanism which only releases when the handles of the hand crimping tool are fully closed. The ratchet mechanism ensures that a full crimp cycle is achieved and avoids partial crimps. This crimping tool has precision ground dies with three crimping sections for producing accurate, high-quality crimps and a flap locator for positioning the contacts during crimping. Ergonomically designed soft handles make this WC-930 hand crimping tool comfortable to use.

Features and Benefits

Ratchet mechanism ensures that a full crimp cycle is achieved
High-quality precision ground dies with three crimping sections
Flap locator for accurate positioning of contacts
Safe operation
Ergonomically designed soft handles

Applications

The WC-930 hand crimping tool is used to crimp contacts with a 20 AWG to 16 AWG wire size (part number SVH-41T-P1.1) onto wire. These crimped contacts can then be inserted into the VH series connector housings.

Note

For loose BVH-41T-P1.1 contacts see stock number 762-0698 .
For reeled SVH-41T-P1.1 contacts see stock number 762-0692 .
For reeled SVH-21T-P1.1 contacts see stock number 762-0702 .

JST VH Connectors 3.96mm Pitch

The JST VH Connector range is a Wire to Board 3.96 mm pitch disconnectable crimp system. The design of these JST VH Connectors includes an unlockable friction-lock for secure contact and mounting. The large current carrying capacity of the JST VH Connector range enables it to be used in a wide variety of signal, power supply and output circuit applications.

Datasheet

JST Crimping Tools Datasheet
