E775NEO, Eclipse Neodymium Magnet 140N, Length 13mm, Width 20mm

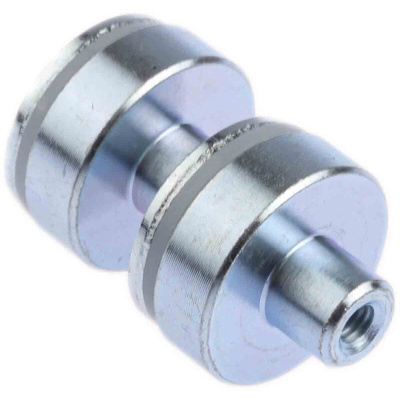

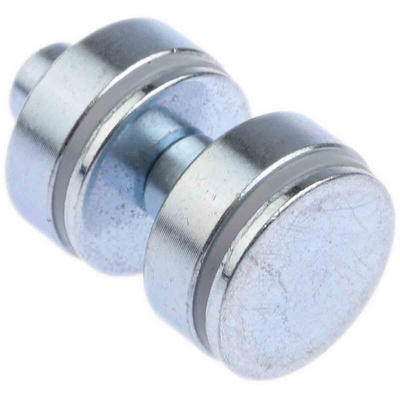

Eclipse Neodymium Shallow Pot Magnet

The Eclipse neodymium shallow pot magnet is a single bi-pole assembly made of iron boron and aluminium. The Neodymium pole pieces are encased in an aluminium pot. It also consists of a ferromagnetic mild steel cup containing a magnet (usually a disc magnet) with a ferromagnetic mild steel mounting at the back of the pot magnet into which a threaded hole is made. It can be used at temperature up to 80°C. This magnet and the mild steel pot form an intricate magnetic circuit to give a bi-pole arrangement on the contact face with 14kg pull force. Its decent thread length allows reasonably high torque to be applied, to securely hold each pot magnet in place.

Features and Benefits

Total height of 13mm and diameter of 20mm
Pot height is 6mm
High resistance to de-magnetisation
Achieve equal or greater holding forces than larger conventional pot magnets
Zinc-coated body
M4 thread size
Made from rare earth material giving high strength flux fields
Maximising contact area with high strength
Weight is 0.0165kg
