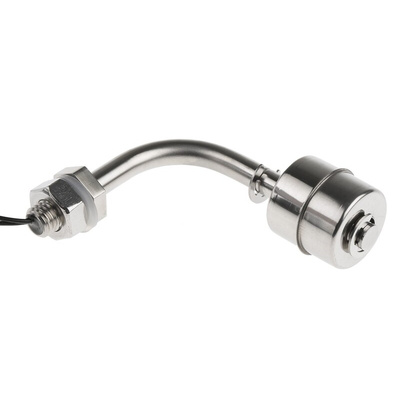

RS PRO Horizontal Stainless Steel Float Switch, Float, 300mm Cable, NO, 250V ac Max, 200V dc Max

RS PRO Horizontal Float Switch, Stainless Steel, NO, Float, 300 mm, 250 V, 200 V

Need a way to monitor the level of a liquid in containers such as tanks? Float switches are a practical solution that will allow you to do just that. This switch is made of hardwearing stainless steel to resist corrosion. It's capable of operating in water, acid and oils and at temperatures ranging between -40°C and 125°C.

Because it's been specially manufactured using low reactivity materials, you can use this switch in tanks containing foodstuffs. Plus, it requires no power supply to operate.

This product is horizontally mounting via a right-angled stem, which makes it suitable for shallower environments. It features a 300-mm cable that's protected by a durable silicone gasket. The float switch works with AC voltage up to 250 V and DC voltage up to 200 V. It can also handle a current of up to 500 mA and pressure of 10 bar Kg/cm².

Features and Benefits

• Horizontal mounting
• Suitable for water, acid, oil or foodstuffs
• Right-angled stem so works in shallow liquids
• No power supply required
• No output
• Cable length of 300 mm
• Silicone gasket for a tight seal
• Minimum operating temperature of -40°C without cracking
• Maximum operating temperature of +125°C without melting
• Voltage rating of 250 V, 200 V
• Maximum current of 500 mA
• Maximum pressure of 10 bar Kg/cm²
• Warning: Don't submerge the cable entry point. Mounting thread and cable entry must be above the highest level of the liquid.
