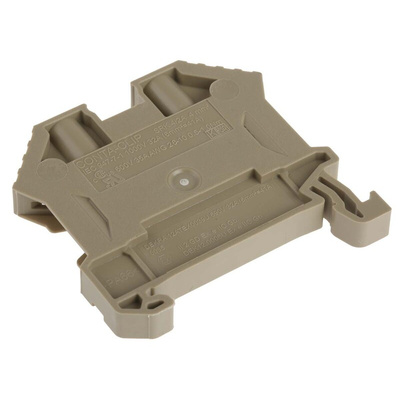

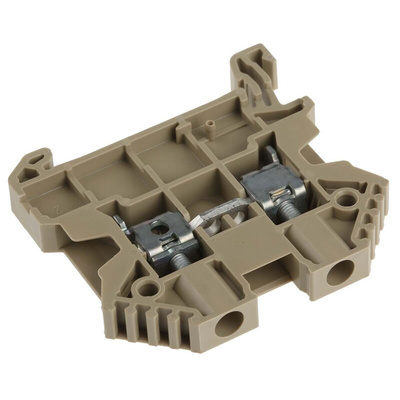

RS PRO Beige DIN Rail Terminal Block, 4mm², Single-Level, Screw Termination

RS PRO, 1 kV Standard Din Rail Terminal, Screw Termination

These pluggable standard DIN rail terminal blocks enable you to safely ground / earth a current in a circuit. They do so without the requirement to run a wire to the main ground / earth connection on a breaker or surge protector. With a wire connection to the base of the block to ground / earth the circuit, these blocks are similar to regular terminal blocks.

Because they're pluggable, these blocks can be connected up and removed more quickly and easily. They also make it possible for adjacent, differently sized terminals to be linked. Thanks to their convenient design, they easily snap onto TS 35 DIN rails.

Made with PA6.6 polyamide material, the terminal blocks have been certified UL94-V2 for fire safety. Industrial circuit boards and control panels commonly feature earth terminal blocks like these.

Features and Benefits

• Green/Yellow
• SSL series
• Wire Size of 22 → 11 AWG
• Voltage rating of 1 kV
• 4 mm² cable CSA
• Single level
• Screw-down termination method
• Pitch of 6.1 mm
• Minimum operating temperature of -40°C
• Maximum operating temperature of +120°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
