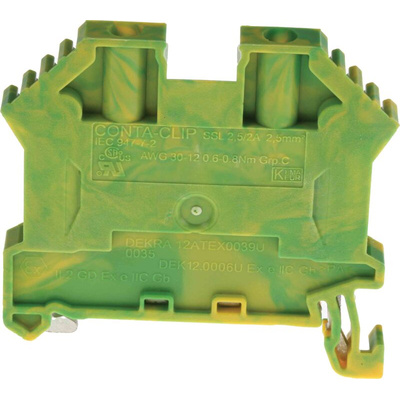

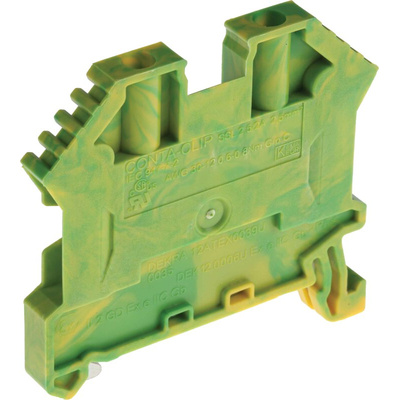

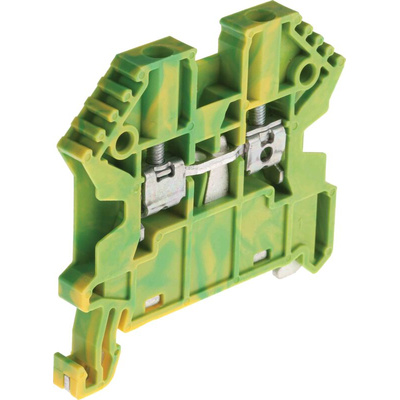

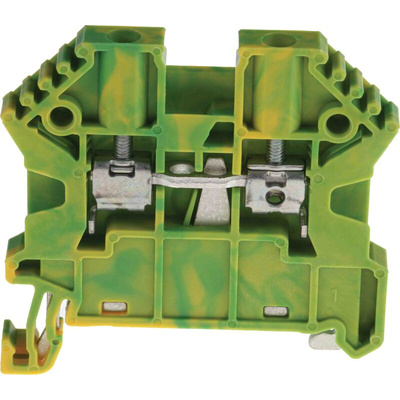

RS PRO Green/Yellow Earth Terminal Block, 2.5mm², Single-Level, Screw Termination

RS PRO Earth Terminal Block, Screw Termination

Earth terminal blocks let you safely ground/earth a current in a circuit, without the need to run a wire to the main ground/earth connection on a breaker or surge protector. These blocks are similar to regular terminal blocks, with a wire connection to the base of the block in order to ground/earth the circuit.

These blocks are pluggable, which gives them a number of benefits over a screw system. They can be connected up and removed more quickly and easily, and they also allow for adjacent terminals of different sizes to be linked up. The terminals are designed to snap onto the TS 35 DIN rails.

The terminal blocks are made from a PA6.6 polyamide material, which has been certified UL94-V2 for fire safety. Industrial circuit boards and control panels frequently make use of earth terminal blocks like these.

Features and Benefits

• Green/Yellow
• SSL series
• Wire Size of 22 → 12 AWG
• 2.5mm² cable CSA
• Single level
• Screw termination method
• Pitch of 5.1 mm
• Minimum operating temperature of -40°C
• Maximum operating temperature of 120°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
